Clicking a particular IRP short-name button, opens the right hand side panel with instance-specific information:
- Current amount of inbound and outbound traffic as well as a quick bandwidth reference graph for the last 5 minutes.
- Configured maximum number of improvements (Max IPv6 Improvements will be shown if IPv6 is enabled)
- Number of Routing Policies improvements
- Number of improvements performed today
- The amount of traffic improved today
- Percentage of prefixes improved today
- Number of operating iBGP sessions
- Number of announcements to the edge router
- Announcements to each from configured routers
- Number of BGP sessions with the providers
- Number of operating BGP sessions with the providers

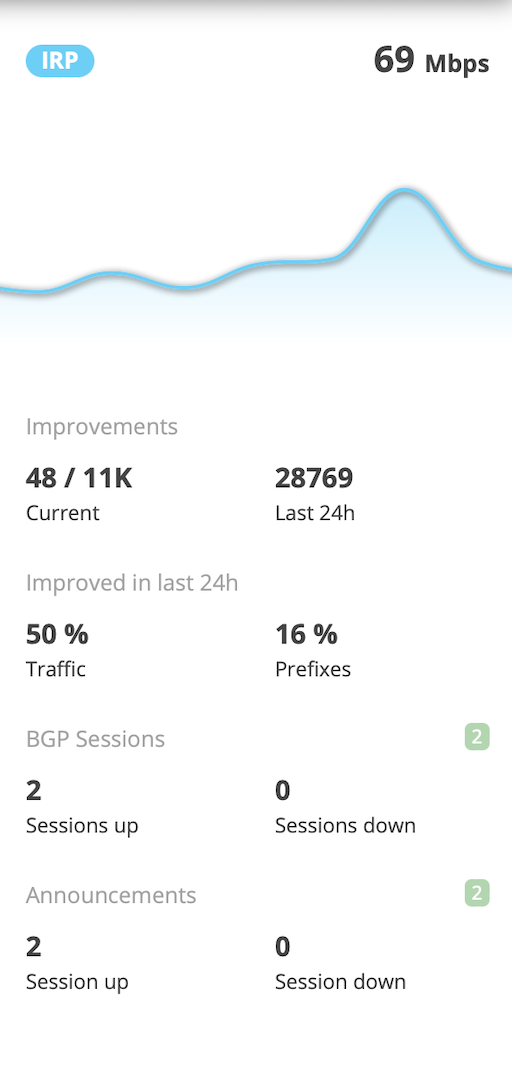

Figure 3.1.7: IRP Instance Performance Stats Quick Reference
See also: GMI Dashboards.
