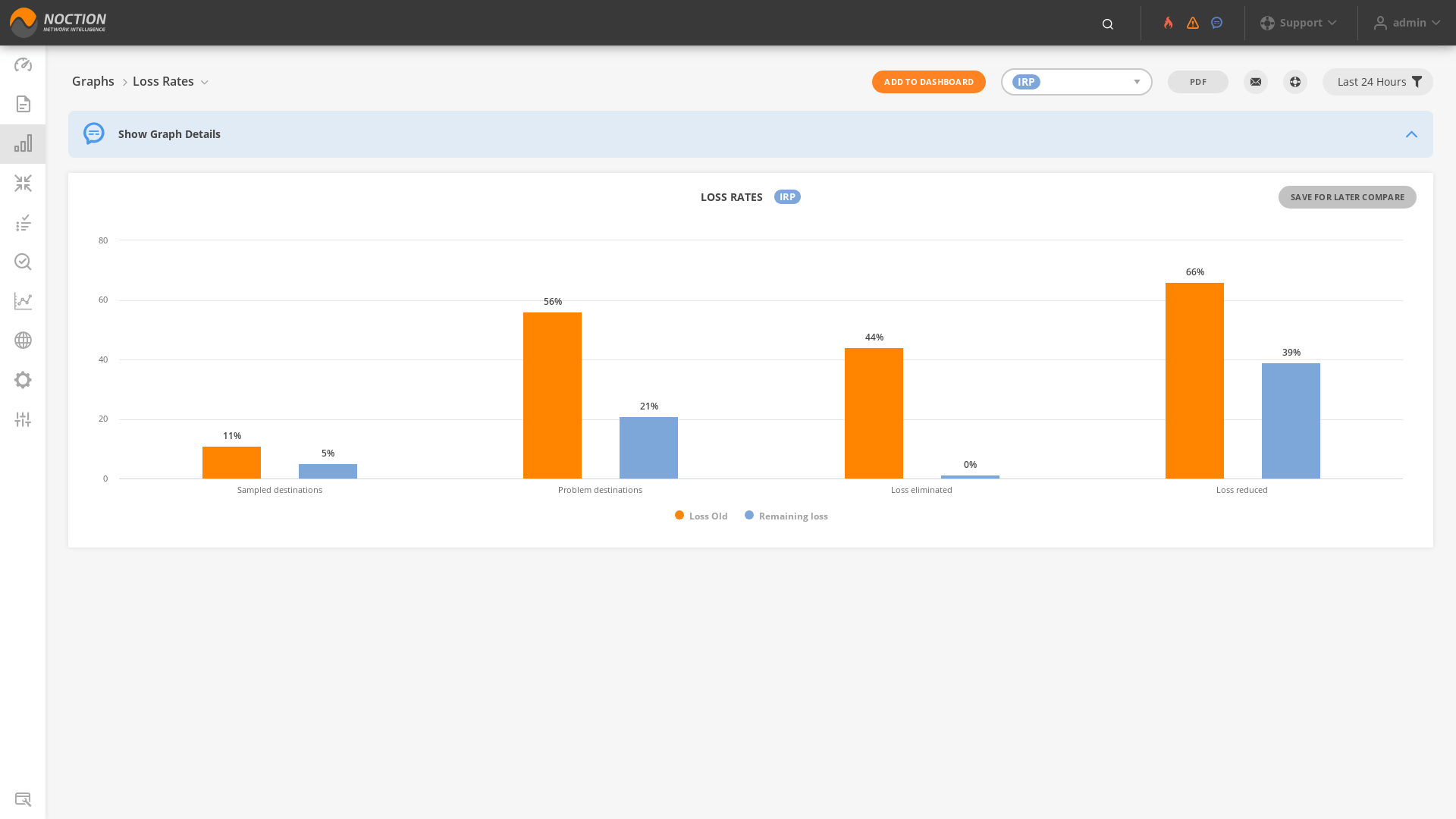

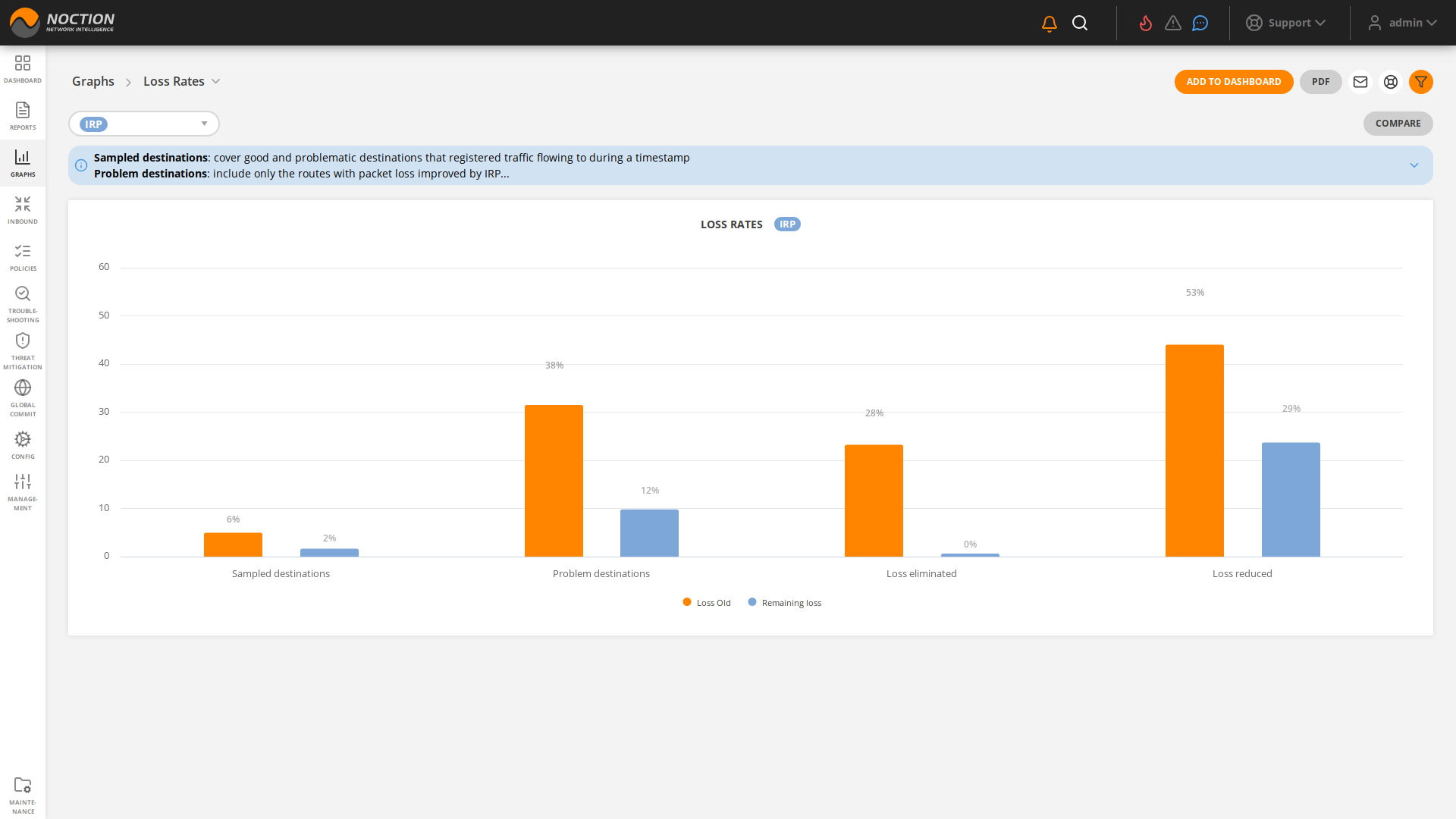

Loss rates bar-chart highlights the packet loss averages before and after improvement for the designated groups of destinations.
Sampled destinations cover good and problematic destinations that registered traffic flowing to during a selected timeframe.
Problem destinations include only the routes with packet loss improved by specific IRP instances.
Loss eliminated: displays Problem destinations that an IRP instance was able to improve to a better route with zero loss.
Loss reduced: displays Problem destinations that IRP was able to improve but could not reduce loss altogether.
Figure 3.5.13: Loss Rates
