3.1.9 Login into GMI
On consecutive visits the GMI username and password need to be provided to login.

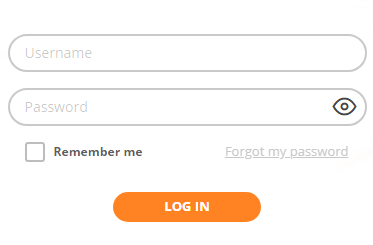

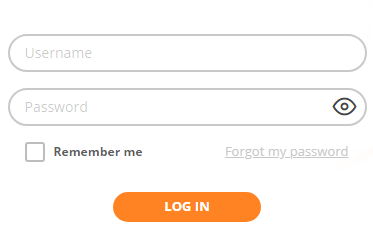

Figure 3.1.3: GMI Frontend login form

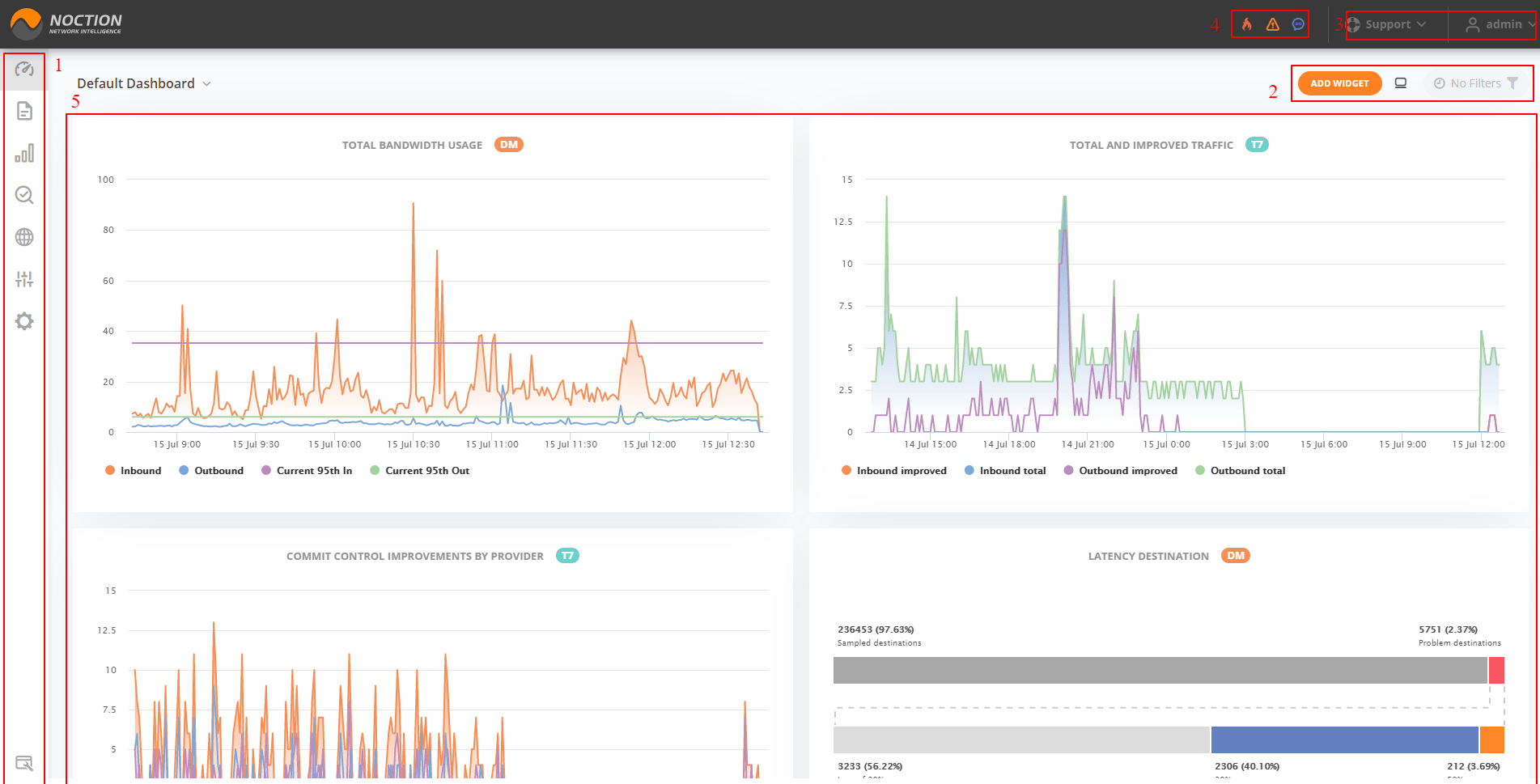

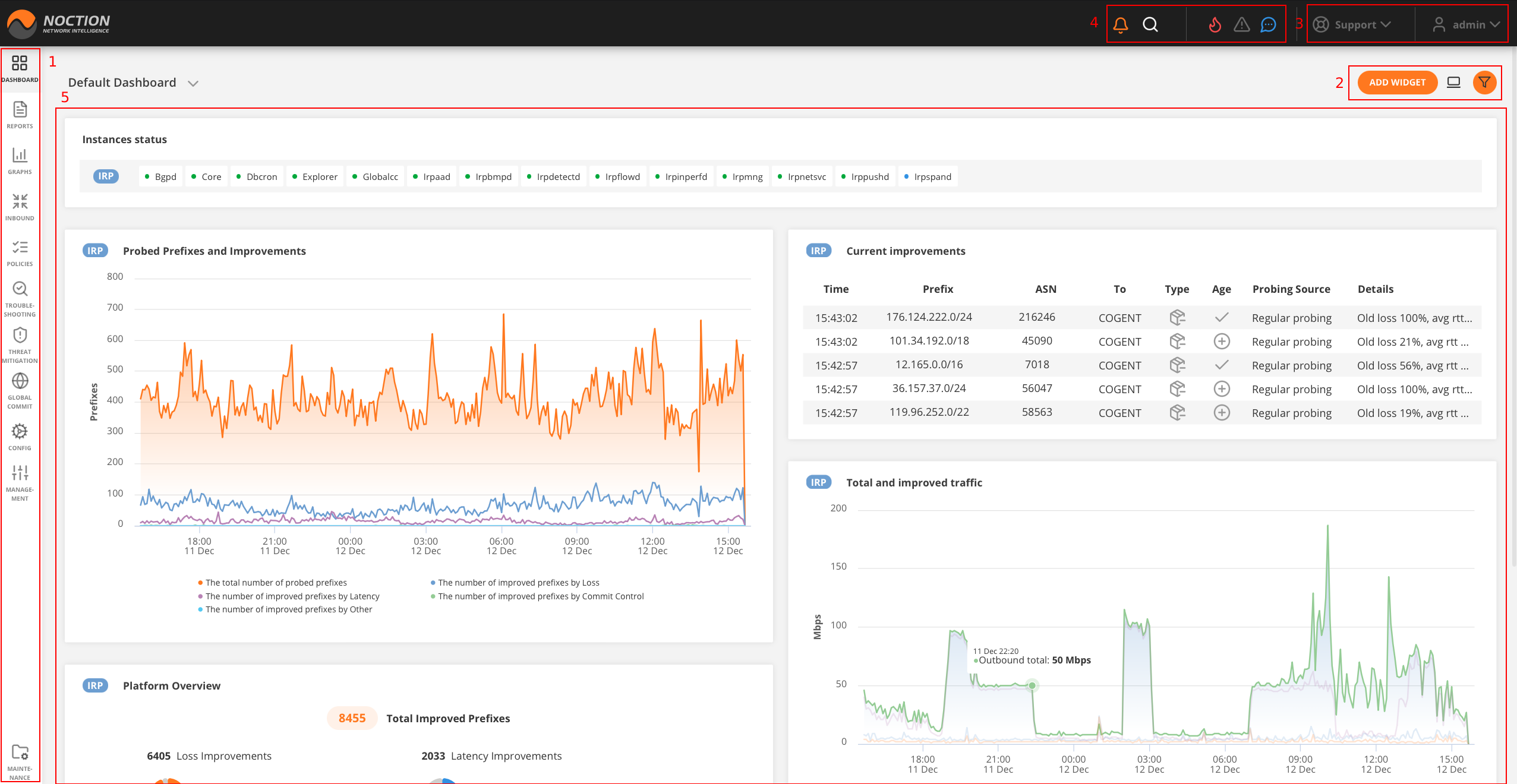

Frontend Structure #
After a successful login, the system’s dashboard will be displayed. The Frontend has several components that operate together and allow a regular user or administrator to access various reports, graphs, or configuration pages.
1. The main left sidebar allows quick access to any part of the system via its menu items.
2. A variation of controls appears here in dashboards, reports and graphs depending on the actual view.
Clicking the timestamp/filter icon opens up the menu on the right side (See section Right Sidebar). Its contents depend on the current page, and include the time selector as well as specific filters, as explained in the next section.
3. Various links to Support, User Guide, Figure: API Documentation and the User account administration are located in the top right corner of the Frontend.
4. The status bar allows one to access system events and notifications (See the Events section).
5. Main dashboard area.
Main dashboard area is editable, widgets can be added, removed or rearranged.
Keyboard shortcuts #
- Dashboard – SHIFT+D
- Reports – SHIFT+R
- Graphs – SHIFT+G
- Inbound – SHIFT+I
- Policies – SHIFT+J
- Troubleshooting – SHIFT+T
- Threat Mitigation – SHIFT+B
- Global Commit – SHIFT+M
- Configuration – SHIFT+C
- Management – SHIFT+S
- Search – Ctrl + K
- Instance sidebar – SHIFT+E
