The “Monitor Status” will report the status of the IRP BGP Internal and External Monitors for each of the configured providers. BGP Monitors monitor the provider BGP session using SNMP protocol and the ICMP/UDP control packets.
When one of the monitors is reported as failed, IRP will withdraw the improvements made towards this peer.
PBR states as a Policy Based Routing, is the mechanism used to ensure that IRP probing packets follow the preconfigured peer and therefore are correct.

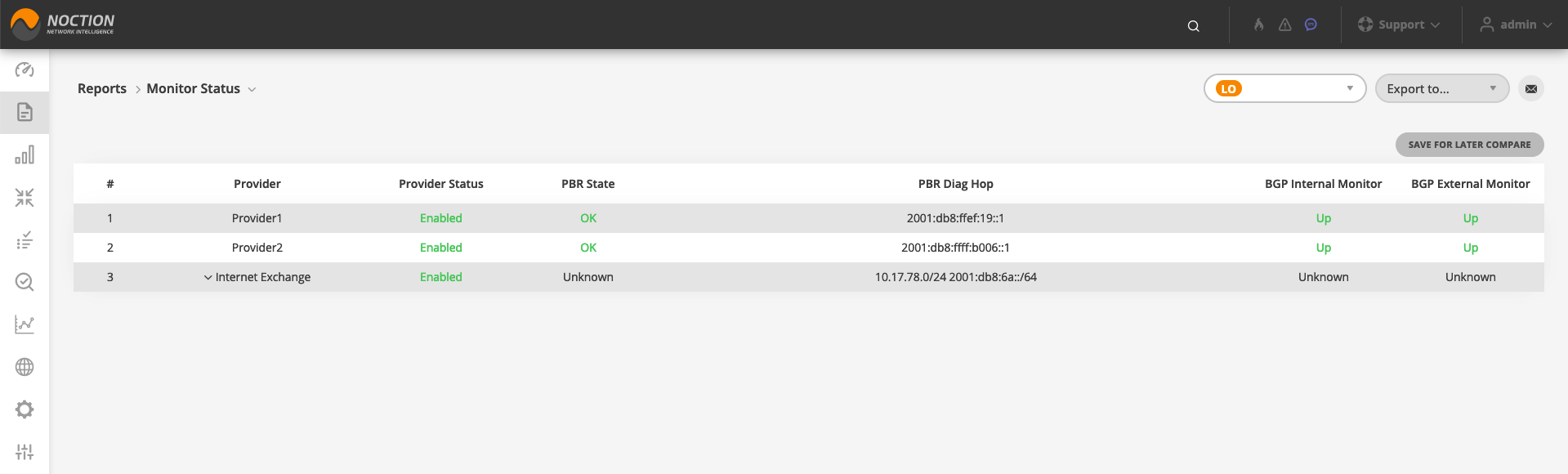

Figure 3.4.20: Monitor Status
