The “Platform Overview” provides information on the rate of improvements based upon latency, loss and cost for a particular IRP instance. This report can be used for a quick overview of an IRP instance performance and improvements. The report displays statistics for IPv4/IPv6 separately, while widget added to a dashboard shows aggregated data.
One can see here that almost all the improved IPv4 routes had a loss drop of 20% or more. For 61% of the improved routes the loss was fully eliminated. There are also 16% of the improved routes, which were redirected from a complete blackout. The report also provides the amount of the accomplished route improvements made, based upon latency, cost and commit level.

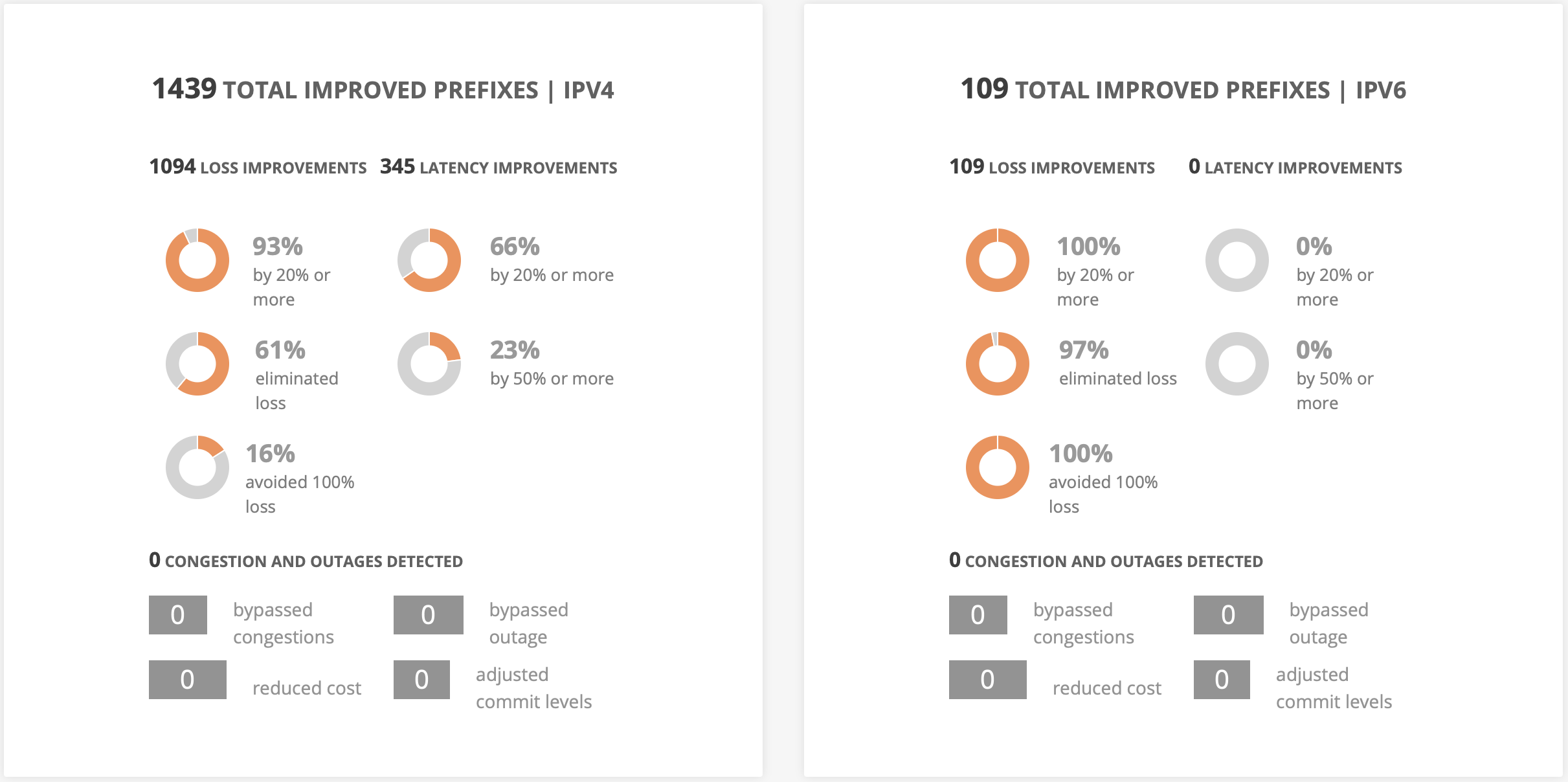

Figure 3.4.22: Platform Overview
