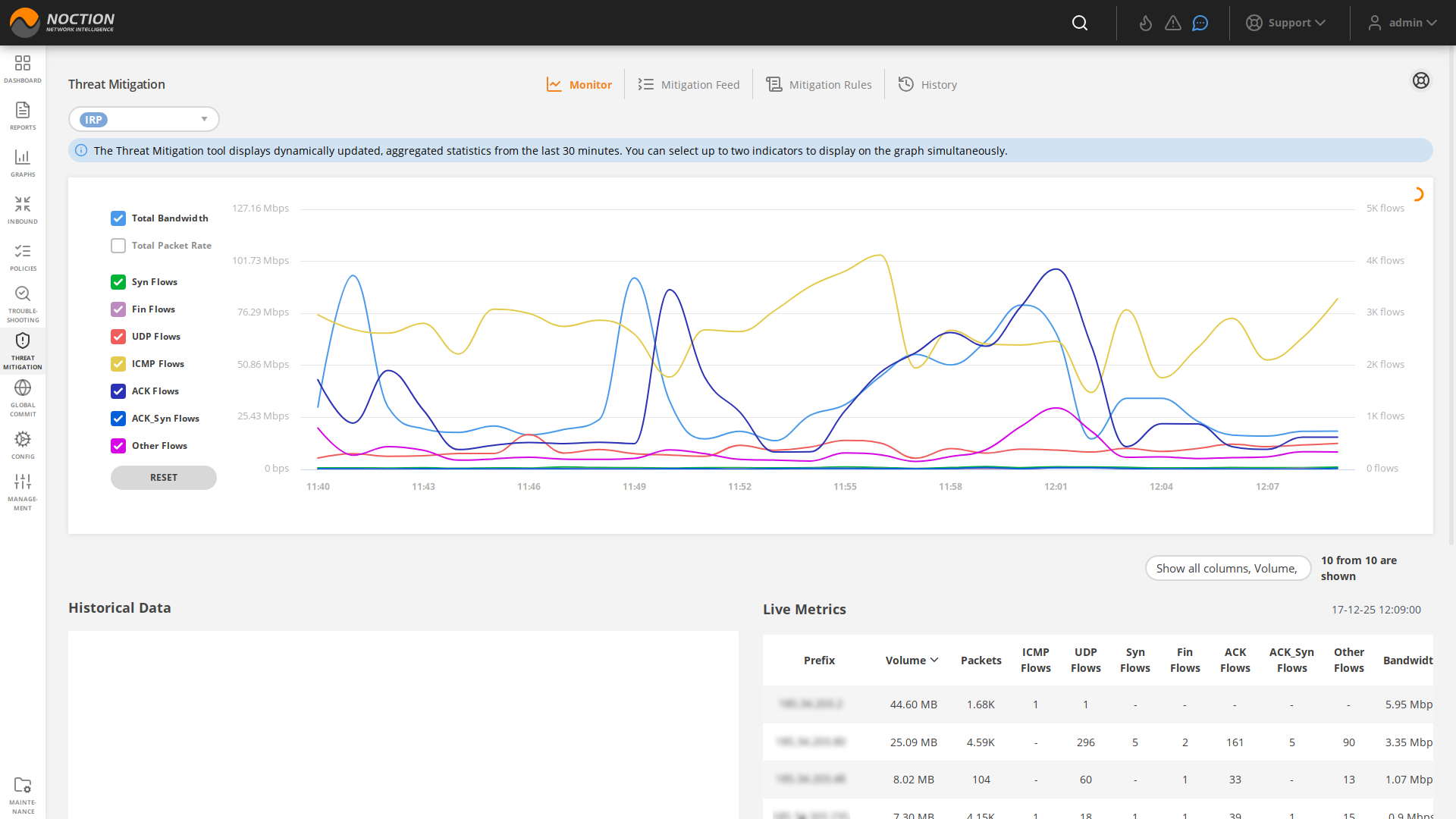

The Monitoring tab offers a 30-minute router(s) traffic graph view, as per specific IRP instance, providing the total Bytes and Packets statistics along with the filter down capability on packet types, including Syn, Fin, UDP, ICMP.
The graph gets updated automatically every minute. To pause the auto-update, click the data point of interest on the graph. This will populate the Historical Data table on the lower left side as well. Click the RESET button to enable the graph auto-update.

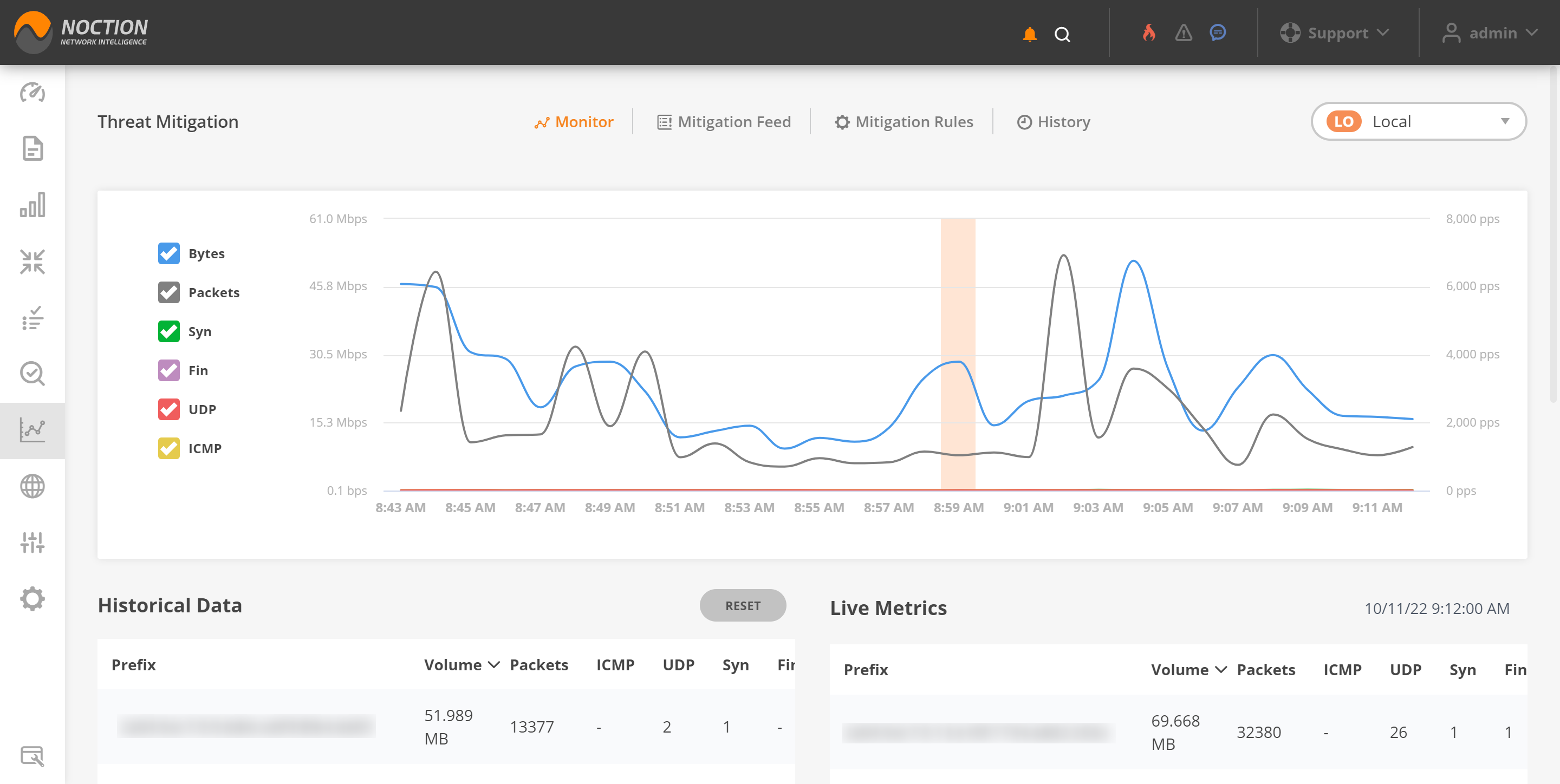

Figure 3.10.1: Threat Monitor
