ASN Traffic Heatmap is the graphical illustration of the AS traffic percentage which highlights the total amount of traffic by ASN and the calculated percentage from total traffic.
Each ASN is represented by a colored heatmap cell, with darker shades indicating higher traffic volume and lighter shades indicating lower traffic volume. The graph legend explains the color coding scheme used in the heatmap further.

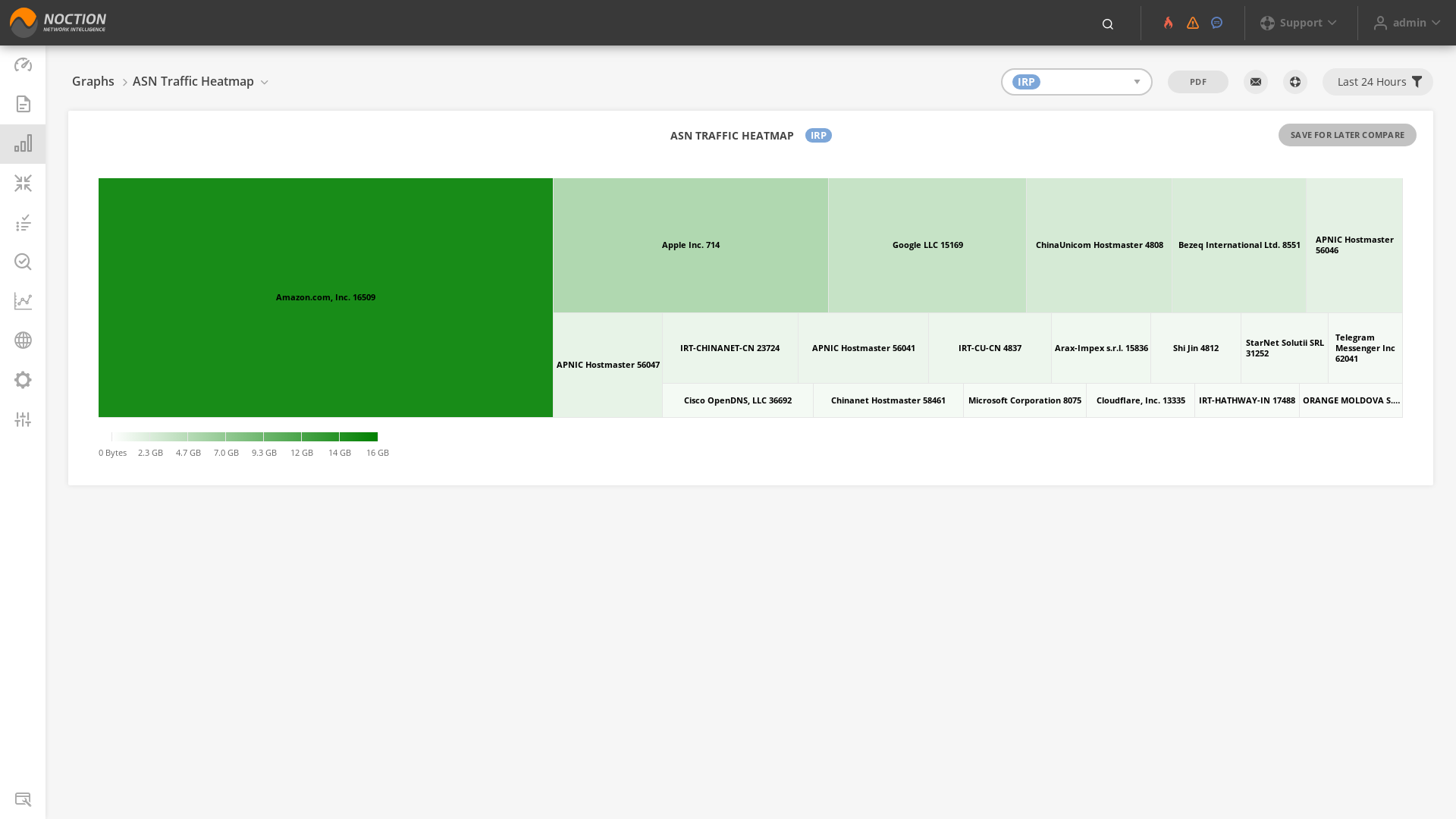

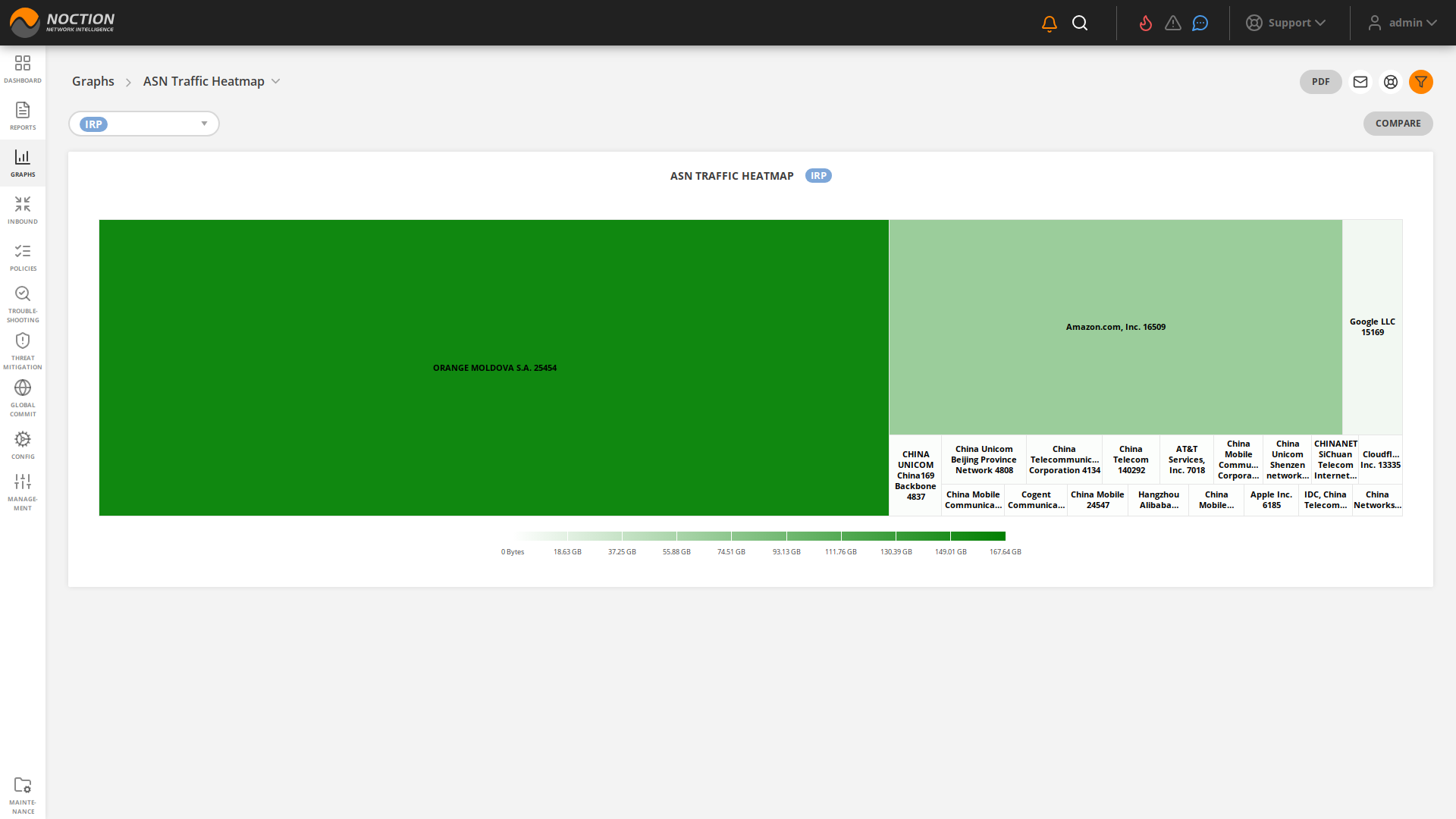

Figure 3.5.2: ASN Traffic Heatmap
