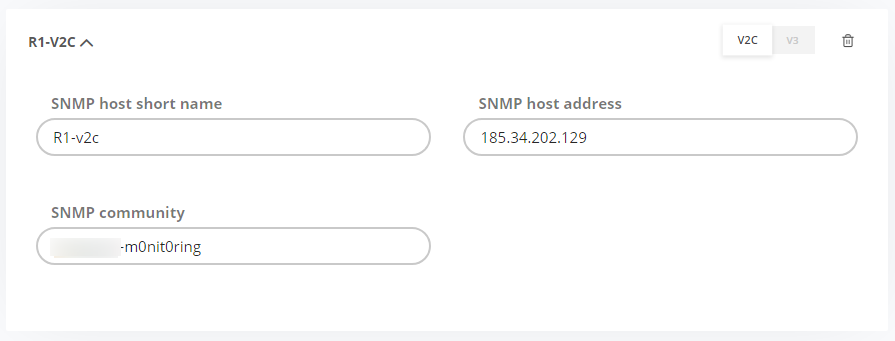

SNMP hosts are nodes on the network that provide or read SNMP data. Multiple SNMP hosts are configured in this section of configuration and references to them are used from elsewhere in the configuration. SNMP hosts can be configured by navigating via to “Configuration → SNMP hosts” tab.
See also: SNMP Host
- SNMP v3 uses additional parameters depending on security services used for statistics collection:
→ SNMP security services selects if Authentication and/or Privacy services are used (snmp.X.seclevel)
→ SNMP authentication password if authentication is used (snmp.X.auth_password)
→ SNMP authentication protocol if authentication is used (snmp.X.auth_protocol)
→ SNMP encryption password if privacy is used (snmp.X.priv_password)
→ SNMP encryption protocol if privacy is used (snmp.X.priv_protocol)
→ SNMP Username if authentication is used (snmp.X.auth_username)
→ SNMP version (snmp.X.version)
