Diverting DDoS traffic using the FlowSpec redirect via VRF capability. Configuration example.


In the previous article, we described different DDoS attacks and their impact on network infrastructure. We focused on the BGP flowspec (BGP-FS) based DDoS mitigation techniques, highlighted its importance, and explained the role of scrubbing devices/services, which large providers use as part of their DDoS mitigation toolkit. Next, we outlined the interaction between the BGP-FS controller and clients, as well as the redirection of the corresponding DDoS flow to the scrubber via VRF or IP next hop.

In this article, we will explain the configuration of the FlowSpec controller and client on Cisco devices using the reference topology shown in Figure 1. As part of the test, we will simulate a DDoS ICMP flood against the 190.160.2.1 server. The DDoS will be redirected to the scrubbing appliance via VRF by the provider edge router PE2 based on the FlowSpec rule configured on the controller P.

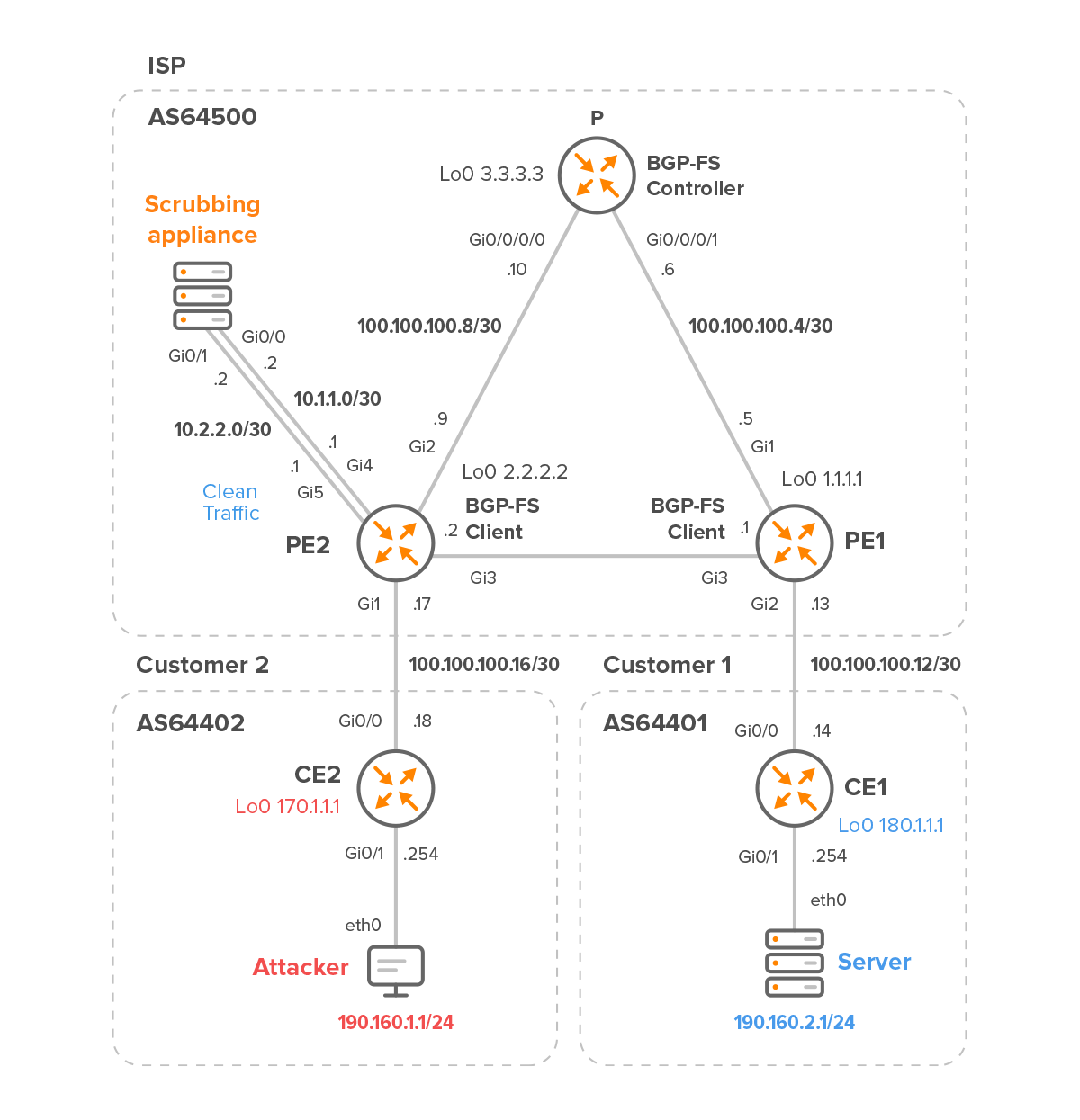

Figure 1 – Internet Service Provider with Customer 2 and 1

The service provider network topology (AS 64500) consists of PE2, PE1, and P routers (Figure 1). Customer 2 and customer 1 are connected to the service provider edge network via PE2 and PE1 routers. Customer 2 (AS 64402) uses BGP to announce the 192.160.1.0/24 prefix from CE2 to the provider´s PE2, whereas Customer 1 (AS 64401) prefix 190.160.2.0/24 to the PE1 router.

The scrubbing appliance is deployed at the network’s edge and connected to PE2.

Routers PE2 and PE1 are Cisco CSR1000v, which we will configure as BGP flowspec clients. To demonstrate the configuration of the BGP flowspec controller on a Cisco IOS-XRv9k, the P router is configured as the controller. The scrubbing appliance is only used to clean “dirty” traffic sent by the edge router PE2 and to forward clean traffic back to PE2.

Table 1 summarizes the software and hardware requirements for the provider’s equipment.

Location BGP AS Hostname Model OS CPU cores RAM [MB] Flowspec
ISP 64500 P IOS XRv9k IOS-XRv 6.5.1 4 8192 Controller
ISP 64500 PE1 CSR1000v IOS-XE 17.03.04a 2 4096 Client
ISP 64500 PE2 CSR1000v IOS-XE 17.03.04a 2 4096 Client
ISP 64500 Scrubber

Table 1 – Internet Service Provider Devices

NOTE: We will skip the configuration of the customer’s routers altogether and instead focus on the configuration of the provider’s devices. We also do not explain the PE1 router configuration because it is similar to the PE2 router configuration.

1. Initial Configuration of Provider’s Network

1.1 P router

First, we need to assign IPv4 addresses and enable OSPF on specific interfaces for inter loopback connectivity between ISPs routers:

interface Loopback0
   ipv4 address 3.3.3.3 255.255.255.255

interface GigabitEthernet0/0/0/0
   ipv4 address 100.100.100.10 255.255.255.252

interface GigabitEthernet0/0/0/1
   ipv4 address 100.100.100.6 255.255.255.252

router ospf 1
   router-id 3.3.3.3
   area 0
      interface Loopback0
      interface GigabitEthernet0/0/0/0
      interface GigabitEthernet0/0/0/1

Next, we need to configure basic BGP neighbor establishment:

router bgp 64500
   bgp router-id 3.3.3.3
   address-family ipv4 unicast

   neighbor 1.1.1.1
    remote-as 64500
    update-source Loopback0
    address-family ipv4 unicast
       next-hop-self

   neighbor 2.2.2.2
    remote-as 64500
    update-source Loopback0
    address-family ipv4 unicast
       next-hop-self

1.2 PE2

Again, we need to assign an IPv4 addresses and configure OSPF for loopback connectivity.

interface Loopback0
   ip address 2.2.2.2 255.255.255.255

interface GigabitEthernet1
   ip address 100.100.100.17 255.255.255.252

interface GigabitEthernet2
   ip address 100.100.100.9 255.255.255.252

interface GigabitEthernet3
   ip address 100.100.100.2 255.255.255.252

interface GigabitEthernet5
   ip address 10.2.2.1 255.255.255.252


router ospf 1
   router-id 2.2.2.2
   network 2.2.2.2 0.0.0.0 area 0
   network 100.100.100.0 0.0.0.3 area 0
   network 100.100.100.4 0.0.0.3 area 0
   network 100.100.100.8 0.0.0.3 area 0
   network 190.160.1.0 0.0.0.3 area 0

A static route is needed to access the loopback interface of the Customer 2 edge router.

ip route 170.1.1.1 255.255.255.255 100.100.100.18

We also need to have a BGP IPv4 Unicast neighborship between all neighbors.

router bgp 64500
   bgp router-id 2.2.2.2
   neighbor 1.1.1.1 remote-as 64500
   neighbor 1.1.1.1 update-source Loopback0
   neighbor 3.3.3.3 remote-as 64500
   neighbor 3.3.3.3 update-source Loopback0
   neighbor 170.1.1.1 remote-as 64402
   neighbor 170.1.1.1 ebgp-multihop 2
   neighbor 170.1.1.1 update-source Loopback0

   address-family ipv4
      neighbor 1.1.1.1 activate
      neighbor 1.1.1.1 next-hop-self
      neighbor 3.3.3.3 activate
      neighbor 3.3.3.3 next-hop-self
      neighbor 170.1.1.1 activate
   exit-address-family

2. Redirecting DDoS Traffic to the Scrubbing Appliance via VRF Routing Instance

2.1 BGP Flowspec Controller configuration on Router P

Activate the BGP flowspec address family on the controller and tie it to the neighbor configuration so we can advertise flowspec rules (routes) to PE1 and PE2 clients:

router bgp 64500
  address-family ipv4 flowspec

  neighbor 1.1.1.1
    address-family ipv4 flowspec

  neighbor 2.2.2.2
    address-family ipv4 flowspec

Traffic matched by the attack-fs class will be redirected from a global traffic link to an individual VRF interface on the PE2 and PE1 clients.

The class is matching ICMP packets with a length equal to or less than 80 bytes or equal to or greater than 200 bytes. The source of the matched DDoS traffic is the subnet 190.160.1.0/24, where the attacker is located and the destination of the traffic is the IP address 190.160.2.1. This is the IP address of the server that we will later flood with ICMP requests with a specific packet length.

class-map type traffic match-all attack-fs
   match destination-address ipv4 190.160.2.1 255.255.255.255
   match protocol icmp
   match source-address ipv4 190.160.1.0 255.255.255.0
   match packet length 200-65535 0-80
   end-class-map

The policy-map attack-pbr type pbr binds the class attack-fs to it and defines a desired action for traffic matched by the class attack-fs. The action “redirect nexthop router-target 666:666” will be attached as an extended BGP community matching a route target 666:666 configured under vrf-dirty on both clients.

policy-map type pbr attack-pbr
   class type traffic attack-fs
    redirect nexthop route-target 666:666

   class type traffic class-default

   end-policy-map

The following configuration ties FlowSpec to the PBR policy attack-pbr defined earlier.

flowspec
   address-family ipv4
      service-policy type pbr attack-pbr

And that’s it for the configuration of the BGP-FS controller. We have successfully created a FlowSpec rule (Figure 2):

RP/0/RP0/CPU0:P# show flowspec afi-all

Figure 2 – FlowSpec Rule on Controller

As soon as we configure the BGP flowspec on clients, we find that the neighborship has been established with both clients (Figure 3).

Figure 3 – BGP Flowspec Neighbors on Controller

2.2 BGP Flowspec Client Configuration on Router PE2

The first thing to do is to activate BGP flowspec address family on the client and tie it to the neighbor configuration:

router bgp 64500
  address-family ipv4 flowspec
    neighbor 3.3.3.3 activate
    neighbor 3.3.3.3 send-community both
  exit-address-family

As shown in Figure 4, we have received one prefix from the BGP FlowSpec controller – neighbor 3.3.3.3.

PE2# show bgp ipv4 flowspec summary | begin Neighbor

Figure 4 – Checking BGP FlowSpec Neighbors on Client PE2

The vrf-dirty configuration is shown below. Essentially, it is just a VRF with the same route-target 666:666 that Cisco IOS XRv9k is advertising flow routes for.

vrf definition vrf-dirty
   rd 666:666
   route-target export 666:666
   route-target import 666:666

   address-family ipv4
   exit-address-family

After creating the VRF vrf-dirty, the next step is assigning the VRF to the interface GigabitEthernet 4 which is connected to the scrubbing appliance (Figure 5).

interface GigabitEthernet4
   vrf forwarding vrf-dirty
   ip address 10.1.1.1 255.255.255.252
PE2# show vrf

Figure 5 – VRF Assigned to Interface Gi4

The default route is required to redirect all traffic straight to the scrubbing appliance (Figure 6).

ip route vrf vrf-dirty 0.0.0.0 0.0.0.0 10.1.1.2
PE2# show ip route vrf vrf-dirty | begin Gateway

Figure 6 – VRF vrf-dirty Routing Table

Configure all interfaces that participate in the BGP FlowSpec.

flowspec
  local-install interface-all
  address-family ipv4
    local-install interface-all
  vrf vrf-dirty
    address-family ipv4
      local-install interface-all

In order to avoid a routing loop, FlowSpec must be disabled on interface GigabitEthernet5 of PE2. This will allow return traffic from the scrubbing appliance to PE2 to flow eastbound towards PE1 inside GRT.

interface GigabitEthernet5
  ip flowspec disable

2.3 Testing Redirection of DDoS Traffic to a scrubbing appliance via VRF Routing Instance

First of all, let’s check if the flowspec rule is received on the PE2 client (Figure 7).

PE2# show bgp ipv4 flowspec

Figure 7 – Flowspec Route (Rule) Received on PE2

Traffic description is encoded into the FlowSpec NLRI and the action is carried as extended community inside the BGP Update message (Figure 8). The redirect extended community allows traffic to be redirected to a VRF routing instance vrf-dirty that lists the route-target 666:666 in its import policy.

Figure 8 – BGP UPDATE Message Captured Between P and PE2

Now start to send series of ping requests to the server 190.160.2.1 from the host Attacker in order to simulate a DDoS attack (Figure 9).

Figure 9 – Flooding Server 190.160.2.1 with Attacker ICMP requests with Default Payload Size of 56 Bytes

Check if the BGP-FS rule is matched with the command below. There is no evidence of matched ICMP packets as counter value is zero (Figure 10).

PE2# show flowspec vrf all afi-all

Figure 10 – Zero Packets Matched by Flowspec Rule on Client PE2

The default size of the Data field in ICMP is 56 bytes and the size of the full IP packet is 84 bytes (Figure 11). Therefore, the defined threshold of 80 <= ICMP packet length <= 200 bytes is not reached and the packet is forwarded from PE2 directly to PE1 towards the server.

Figure 11 – ICMP Packet Captured on Link Between PE2 and PE1

We reduce the size of the data field to 52 bytes and send a series of six IMCP requests to the Server (Figure 12). The size of the IP packet is 80 bytes, and our defined lower limit of 80 bytes is now reached.

Figure 12 – Flooding Server 190.160.2.1 with ICMP Requests with Data Size of 52 Bytes

Let’s check the matched packet counter again with the following command:

PE2# show flowspec vrf all afi-all

Figure 13 – Six Packets Matched by Flowspec Rule on Client PE2

Notice the screenshot of six packet captured between PE2 and the scrubbing appliance shown in Figure 14. The warning message “no response found!” tells us that the ICMP reply is not found. The six IMCP packets, each with the length value of 80 Bytes are matched by the BGP-FS rule, redirected to VRF vrf-dirty from the Global Routing Table (GRT) and forwarded to a scrubbing appliance via GigabitEthernet 4 interface of PE2.

The appliance cleans up traffic and sends it via the Gi0/1 interface back to PE2, which in its turn forwards packets to PE1. ICMP responses from the server are received by PE2 which forwards them to the customer router CE2 under the default VRF (GRT). The Wireshark connected between PE2 and the appliance complains about the missing ICMP responses.

Figure 14 – ICMP Request Captured Between PE2 and the scrubbing appliance


Conclusion

We hope the above information will help out those network administrators looking to protect their networks against DDoS attacks by redirecting malicious traffic to scrubbing appliances via VRF. Should you want to automate DDoS detection and mitigation actions within your network, consider looking at the latest Noction Intelligent Routing Platform version, featuring the FlowSpec Redirect and BGP redirect threat mitigation mechanisms.
