Noction Flow Analyzer Documentation

Noction Flow Analyzer Documentation

Noction Flow Analyzer (NFA) is a web-based network traffic analysis, monitoring and alerting tool. The product enables engineers to optimize their networks and applications performance, control bandwidth utilization, do the proper network capacity planning, perform detailed BGP peering analysis, improve security, and minimize network incidents response time.

1.1 NFA Components

Noction Flow Analyzer contains a few fundamental components, which working together implement the main function of NFA – offer timely traffic flows information that is easy to interpret and analyze.

Flow Analyzer components

Collector (NFAflowd) receives, analyzes, and processes all traffic transiting a network.

Databases NFA uses two databases: MySQL (configuration) and ClickHouse (Data Mart), that act relating to the central repository which stores processing results.

NFAAPId represents a set of secure web services that collect data from Databases. A valid NFA user-id is required to access most of the API services. Access NFA’s frontend to manage users or configure external User Directories. NFA API uses an authentication mechanism based on authentication tokens. The token is passed as a query parameter for all API requests that require authentication.

NFABGPd stores and keeps all routes and adds AS Path to traffic flow.

NFApushd is used to send notifications and alerts to the end-users.

NFAaggd periodically aggregates flow data that is stored in the database and flushes data according to the configuration parameters.

NFAalertd is used to detect and generate alerts based on the alert settings set by the end-user.

Msg. Broker is used for communication between the NFA components.

Frontend represents a complex browser application that interacts with NFAAPId. It offers a comprehensive set of reports, graphs and flows information that can reflect the current and historical state of a network.

1.2 Collector

The collector is one of NFA’s most important components. It receives, analyzes, and processes all traffic transiting the network and transfers data in a compatible mode to NFA Databases – MySQL and ClickHouse. It processes the most common types of Flow: NetFlow, sFlow, J-Flow, IPFIX, NetStream.

sFlow (6343 port) is a protocol designed for monitoring network, wireless and host devices. Developed by the sFlow. org Consortium, this protocol is supported by a wide range of network devices, as well as routing software and network solutions. sFlow, short for “sampled flow”, is an industry-standard for packet export at Layer 2 of the OSI model. It provides the means for exporting truncated packets, together with interface counters. It’s a packet sampling for an N number of packets with all required statistical information and expedited to the destination collector. The information details taken from the packet are the headers from Layer 3 and 4 and some information about the upper layers’ data only. For example, if the HTTP protocol is present, sFlow will guarantee data confidentiality since it will not extract the information from the packet and will not collect all network sessions.

NetFlow (2055 port) is an IP network statistics protocol developed by Cisco Systems, Inc. that offers the ability to collect IP session network traffic as it enters or exits an interface. By analyzing the data that is provided by NetFlow a network administrator can determine things such as the source and destination of traffic, class of service, and the cause of congestion. Juniper routers offer a similar feature called J-Flow which in its essence is the same Cisco NetFlow protocol.

Flow statistics are captured and stored in DB which NFA’s graphical interface subsequently offers to users as dashboards, charts, and reports with filtering, grouping, and aggregation functions.

Network devices should be first configured to forward Flow statistics to NFA in order for it to get the initial data to operate on. NFA listens to Flow stats on the default protocol ports. Flow ports can be changed from the Configuration Settings section of NFA’s Front End.

Note: Set the frequency of Flow exports on network devices as frequently as possible. For best
results export intervals should be set to 1 min or even less.

1.3 Databases

NFA processes huge volumes of data and uses two databases to store all the related information: MySQL and ClickHouse. The accumulated information is used by other NFA components to provide a graphical view of flow parameters.

MySQL is the most popular Open Source SQL database management system, developed, distributed, and supported by Oracle Corporation. It plays the role of NFA’s system data depository which possesses configuration, dashboard, device, and user information.

ClickHouse is a column-oriented database management system (DBMS) for the online analytical processing of queries (OLAP).

ClickHouse benefits:
• Extremely Fast scans that can be used for real-time queries.
• Real-time data ingestion
• Parallel processing for a single query
• Hardware efficient
• Scales well both vertically and horizontally

The most important ClickHouse tables are:
• BGP
• Database_version
• Flows1
• Flows2
• Raw
• Template_flows

Flows Tables comprise the meaningful flow data.

2. NFA Functionality

2.1 Frontend

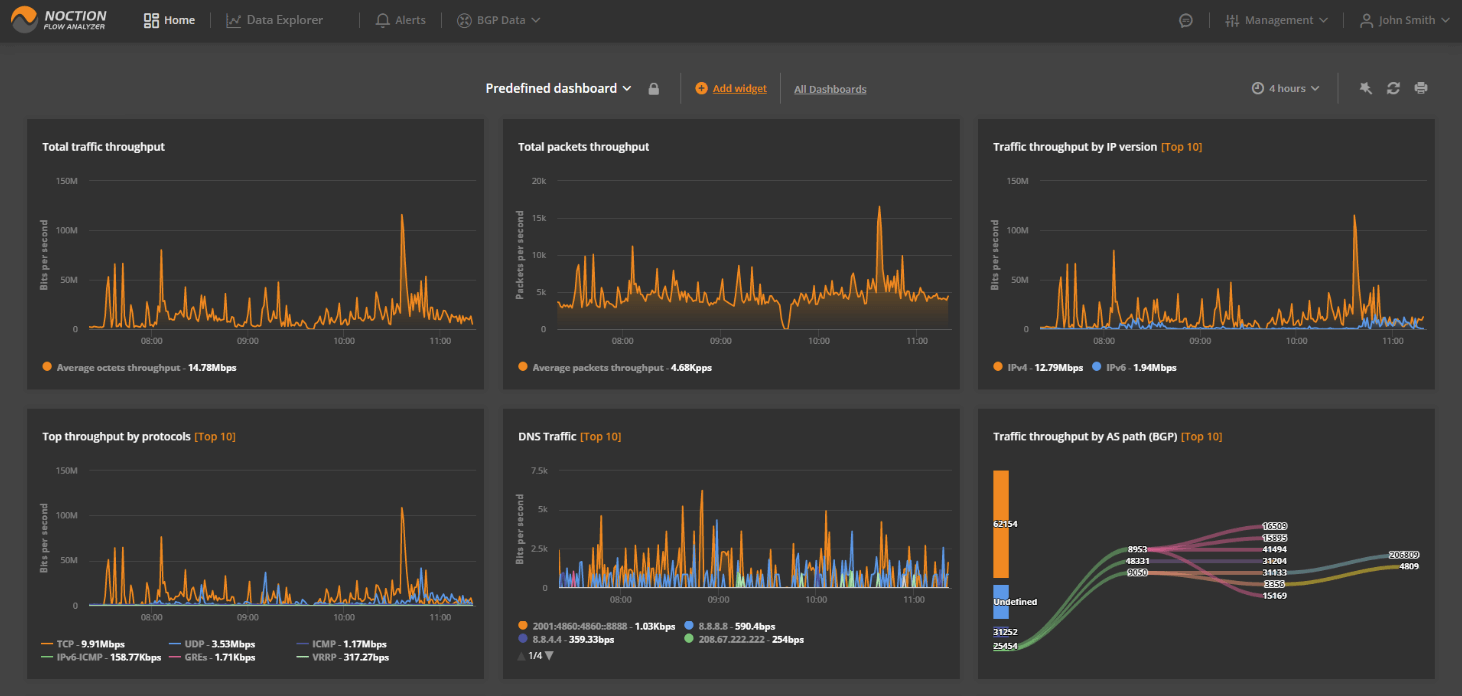

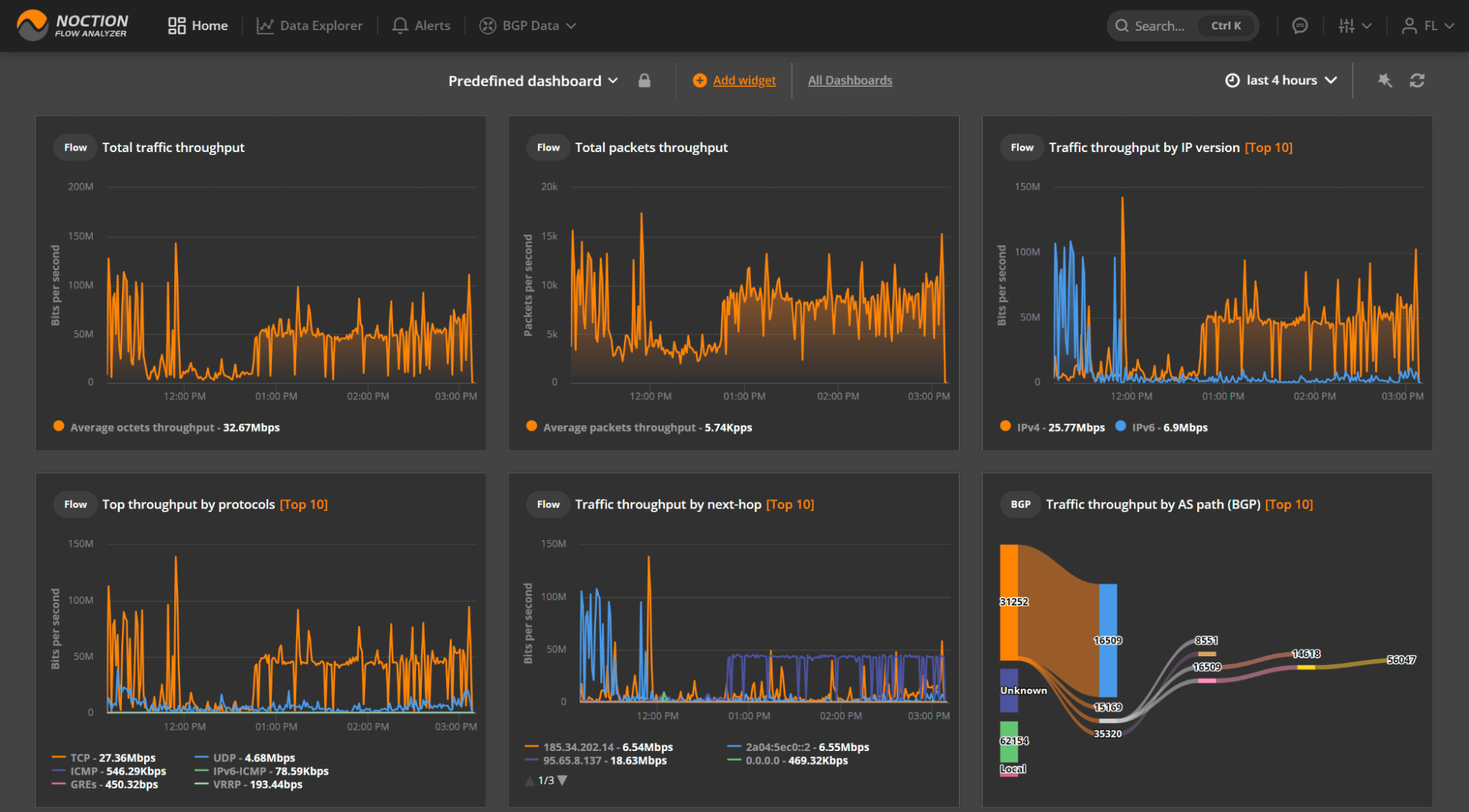

NFA main page is designed to display a dashboard of choice and offer facilities to access all application features via its main menu, navigation buttons, and links.

Frontend

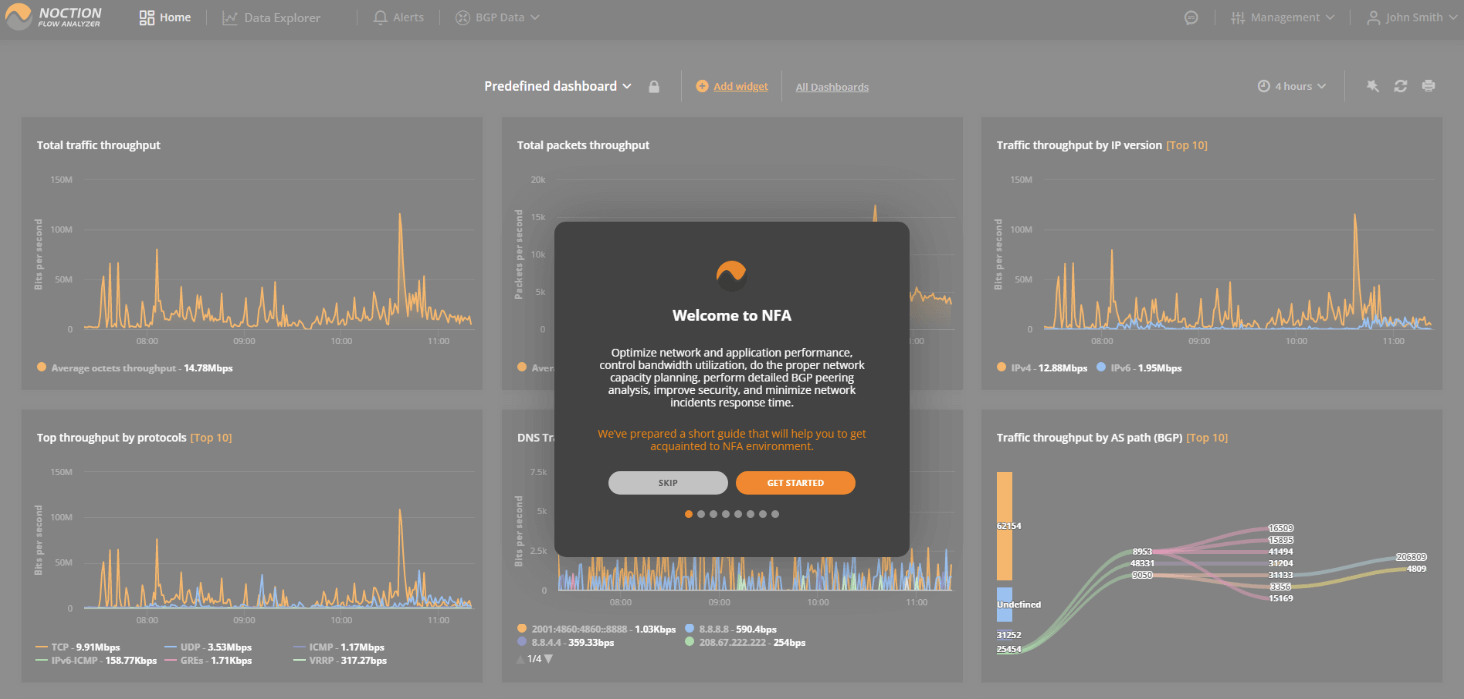

When installing NFA for the first time, a welcome wizard pops up on the screen. It showcases and guides you through the system, displaying the list of available NFA features and how they work. This makes the first-time user understand all the product capabilities & configuration procedures a lot easier and faster.

frontend wizard

If at any time you decide to go through the wizard steps again, you can do so by navigating to your Username > Profile > General and restarting the wizard.

2.1.1 Dashboards

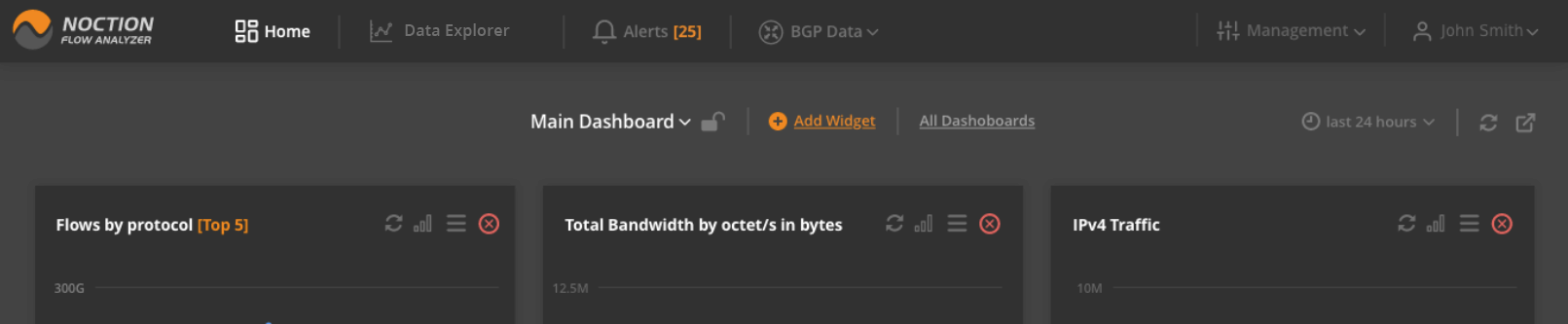

NFA dashboards are the specific sets of flexible and interactive visualizations, designed for quick analysis of the network traffic data and informational awareness. Dashboards consist of widgets – containers with graphical representations of specific data, which can be added, edited, positioned, deleted or modified as you like.

NFA Dashboards

NFA allows users to set up multiple dashboards. To see a list of existing dashboards, click the All Dashboards link in the top menu.

NFA dashboard screenshot

Dashboards are grouped for easy access into recent, favorite and all. For each dashboard, the directory displays the following information:

Name: The name of the dashboard
Description: Dashboard user-defined description
Favorite: a state marked by a star icon
Created by: The user who created the dashboard
List of widgets: widget names used in the dashboard
Default status: the default dashboard the user lands on when logging into NFA

Creating a new dashboard

You can easily create a new dashboard in NFA from the All Dashboards directory.
Click the “ADD DASHBOARD” button. A pop-up will appear. Choose if you’d like to create a dashboard from scratch or build one based on an existing dashboard.

creating nfa dashboard

Select the widgets you’d like to add to your dashboard.

add widgets to flow analyzer dashboard

Provide a meaningful name and description for your dashboard. Mark if you’d prefer it to be a “Shared” (all NFA users will have access to dashboard) and/or “Favorite” dashboard. Press “SUBMIT” to continue.

press submit

Alternatively, you can create a new dashboard by cloning an existing one in the All Dashboards directory.

all dashboards

The clone dashboard will be automatically created along with widgets from the original dashboard and added to the directory. Edit the newly created dashboard to change its name and description.

Managing Dashboards

Access any of the dashboards you’ve created or had admin rights to. Click the padlock icon in the top menu to add, edit and delete widgets or customize the dashboard’s layout.

managing nfa dashboards
Deleting a Dashboard

Click the “Delete” icon on the dashboard you’d like to get rid of in the All Dashboards directory.
You can only delete a dashboard if you created it, or if you‘ve been granted the corresponding admin rights.

2.1.2 Widgets

All network traffic information in NFA is graphically represented by widgets, which are the main dashboard elements. Widgets encompass a particular query focusing on the desired network feature. A library of widgets is maintained by NFA and allows users to reuse them across all dashboards.

widgets

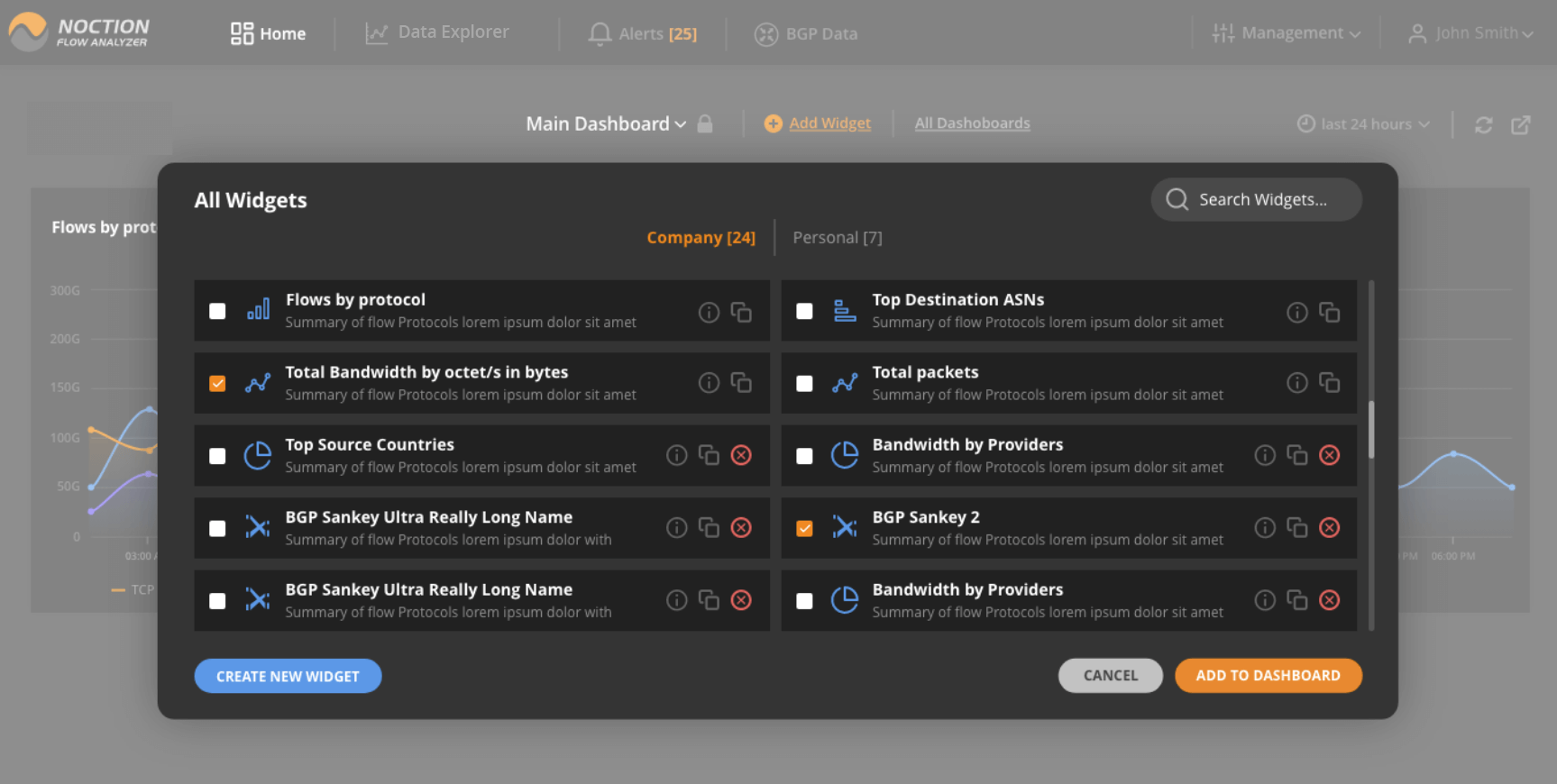

Use the Add Widget function available on each dashboard to see the library of existing widgets and place the desired ones on a dashboard.

add widget

You can easily create a new widget from scratch by proceeding to Data Explorer in the top menu, selecting the filtering and grouping options and subsequently saving the Data Explorer view as a new widget to the desired dashboard.

create a new widget

Alternatively, you can create a new widget by duplicating an existing one. Click on the existing widget name to open it in Data Explorer. Make desired modifications and save it as a new widget.

Feel free to change the widgets graph settings, appearance as well as the legend position by clicking the appropriate buttons in the top right corner of the Data Explorer graph or the actual widget.

2.1.2 last

2.2 Data Explorer

Data Explorer provides detailed network traffic stats in both chart (when possible) and report forms. “Group & Order“, “Filters” and “Narrow by” functions are available to focus or broaden attention to the desired aspects of network traffic.

Data Explorer can be accessed either from the Main Menu or by clicking on any widget’s header on dashboards. Any grouping and filtering criteria previously setup in widgets will auto-populate in Data Explorer.

Data Explorer takes the ensuing statistics from the DB table Flows which includes but is not limited by the following:

• Time
• Source and Destination Address
• Source and Destination Port
• Source and Destination VLAN
• Source and Destination Mask
• Source and Destination AS Number
• Source and Destination Country
• Source and Destination City
• Source and Destination L2 MAC Address
• MPLS Top Label to Top Label 9
• MPLS Top Label Type
• MPLS Top Label IPv4 Address
• MPLS Top Label IPv6 Address

• MPLS Top Label Prefix Length
• MPLS VPN Route Distinguisher
• MPLS Top Label TTL
• MPLS Label Stack Length
• MPLS Label Stack Depth
• MPLS Top Label Exp
• L3 IP TTL,
• L3 IP min TTL,
• L3 IP max TTL,
• L3 IP Total Length,
• L3 IP min Total Length
• L3 IP max Total Length
• BGP Community
• AS Path Length

• TOS – Type of Service
• Protocol
• Input Interface
• Output Interface
• Next Hop Address
• AS Path
• Pseudowire ID
• Pseudowire Type
• Pseudowire Control Word
• BGP Local Preference
• BGP MED
• Exporter Address
• Exporter ID

NFA by default uses SUM aggregation functions over Packets and Octets flow metrics.

data explorer
Data Explorer functions:

Group by – specifies how to group data.
Filters – specify only the data of interest to include in results
Narrow By – specify from what locations, network devices, and/or interfaces to consider the stats
Time horizon – sets the time interval to explore
Packets depict whether Packets, Octets, bits/s metrics are aggregated and plotted on charts
Save | My Filters allows saving a specific set of selected filters with their corresponding values to “My Filters” library for future use
Run query – runs the query and retrieves data
Save as widget – prompts for a widget to be added to the library with this exact combo of filters and group by criteria
Display as – chart type icon allows switching between different ways to plot result data

Note: Top 10 results are shown by default in Data Explorer and the subsequently created widgets. To change the default settings go to Advanced options and indicate the desired number of results to be displayed on a graph. You can also limit the number of rows to be shown in the table.

To hide/show specific table columns, click the corresponding “Hide/Show Columns” dropdown option.

hide-show option

2.2.1 Group & Order

Grouping is one of the essential criteria to analyze data. Grouping by source or destination will indicate if the traffic is inbound or outbound, grouping by the port will highlight what amount of traffic the network has for different applications and so on. Using grouping we can specify one or more Flow attributes to be analyzed.

group order

To group the results by either all source and/or destination prefixes or by specific prefix sizes, go to Data Explorer > Group & Order and introduce the desired prefix grouping parameters.

Group Order 2

2.2.2 Filters

Filters are used to constrain the analyzed data to a particular subset that matches filter criteria. Filters can be applied while working with Dashboards or within Data Explorer. It is a very important feature as it saves time and significantly reduces the workload.

Note: NFA applies AND | OR logical operation across conditions or groups of conditions. Thus we can get various sessions like: IP address AND (port = 80 OR port = 443) when a particular server web traffic is queried.

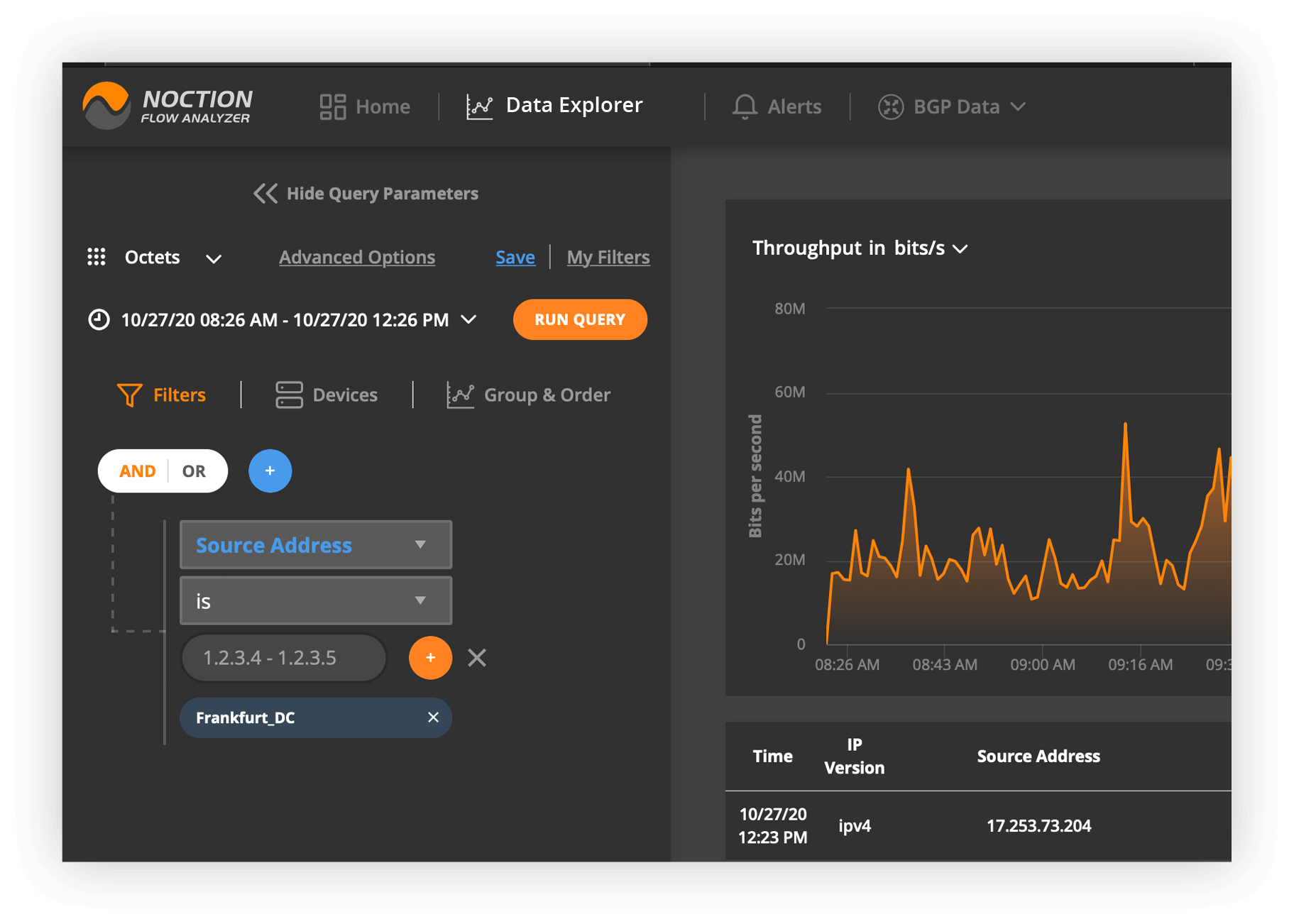

Preconfigured Custom Groups (see section 3.3) can be used as filters. To do so, select a filtering condition, e.g. Source or Destination Address and type in the custom group’s name, then run your query.

flow data filters

2.2.3 Filter by Locations, Devices and Interfaces

NFA users can filter flow data in Data Explorer or dashboards by devices that have been initially added to the system as well as interfaces. There is an option to select one/multiple devices/interfaces or groups of devices assigned to specific locations (sites).

Note Interface names and descriptions can be identified via NetFlow, IPFIX or NetStream when the flow options template export is set up on the corresponding devices or via SNMP.
Note that the Flow stats received by NFA and NOT matched to any configured devices will be assigned to a default Not Named device.
flow sources

Flow sources are matched to configured devices by Exporter IP only or Exporter IP and Exporter ID (if such has been provided).

2.2.4 Time Intervals

Time intervals govern how fast and how detailed the resulting data can be. When a query extends over a long time interval or checks data far in the past the results will be less granular compared to shorter and current time intervals.

time intervals

2.2.5 Percentile Reporting

95th percentile is a popular network calculation used for reporting and billing burstable network usage. It typically serves as a baseline for traffic utilization metering on a network. Starting with NFA v 21.06, percentile value calculation, be it for 95th or any other, is available for packets, octets, and flows.

Go to Data Explorer, click the % icon, specify the percentile you want NFA to calculate, add any filtering conditions, and hit the “Run Query” button. Note, NFA calculates the Xth percentile, where X is an integer between 1 and 100. Feel free to save your view as a widget and add it to any of your dashboards.

95th percentile reporting

2.4 BGP Data

BGP Data is delivered as an optional add-on to Noction Flow Analyzer.

NFA overcomes the limitation of BGP support in traditional NetFlow. It employs a collection of full BGP data from BGP tables of edge routers, extracting the required BGP attributes. NFA extracts BGP attributes such as AS_PATH and matches the obtained data with a corresponding flow record from Flow DB tables. This enables NFA to see and filter on the full BGP path, not just the next hop, first three or last three AS numbers.

Enabling BGP data will require you to establish a BGP session between at least one of your routers and NFA.

2.4.1 BGP Report

Use the BGP Report section to see BGP data obtained from your devices. The BGP Route advertisements and withdrawals can now be visualized both in a graph and table mode.

Filter, group, and search data according to your needs. Create and add custom widgets to any of your dashboards.

BGP Report

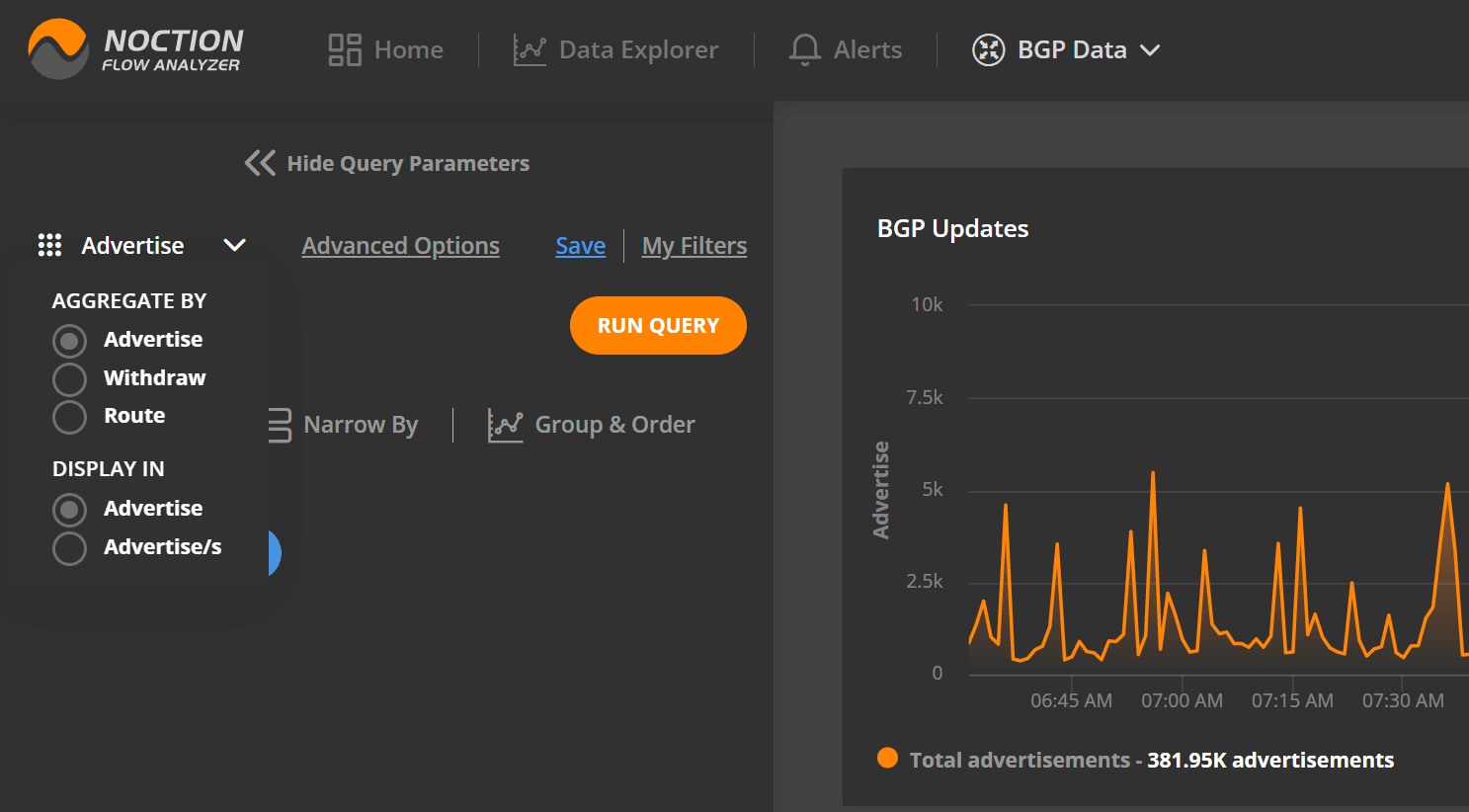

BGP Route advertisements and withdrawals can be visualized both in a graph and table mode. BGP Routes representation helps provide a greater view of prefix reachability inconsistency details obtained from the connected devices. Users can analyze the effect of routing changes by reviewing all routes active in the selected time window or filter results down to a specific prefix.

BGP routes

2.4.2 BGP Sankey Diagram

NFA offers a great way to visualize the Internet traffic routing criteria along with traffic volume using a Sankey type diagram. Its extensive filtering capabilities can provide you with a clear picture of the paths your traffic is taking, the countries regions or cities you traffic originates and terminates in, traffic volume distribution by different paths, best potential new peering candidates, and a lot more.

The list of available filters is listed below:

• Time
• Source and Destination Address
• Source and Destination Port
• Source and Destination VLAN
• Source and Destination Mask
• Source and Destination AS Number
• Source and Destination Country
• Source and Destination City
• Source and Destination L2 MAC Address
• MPLS Top Label to Top Label 9
• MPLS Top Label Type
• MPLS Top Label IPv4 Address
• MPLS Top Label IPv6 Address

• MPLS Top Label Prefix Length
• MPLS VPN Route Distinguisher
• MPLS Top Label TTL
• MPLS Label Stack Length
• MPLS Label Stack Depth
• MPLS Top Label Exp
• L3 IP TTL,
• L3 IP min TTL,
• L3 IP max TTL,
• L3 IP Total Length,
• L3 IP min Total Length
• L3 IP max Total Length
• BGP Community
• AS Path Length

• TOS – Type of Service
• Protocol
• Input Interface
• Output Interface
• Next Hop Address
• AS Path
• Pseudowire ID
• Pseudowire Type
• Pseudowire Control Word
• BGP Local Preference
• BGP MED
• Exporter Address
• Exporter ID

2.4.2 first

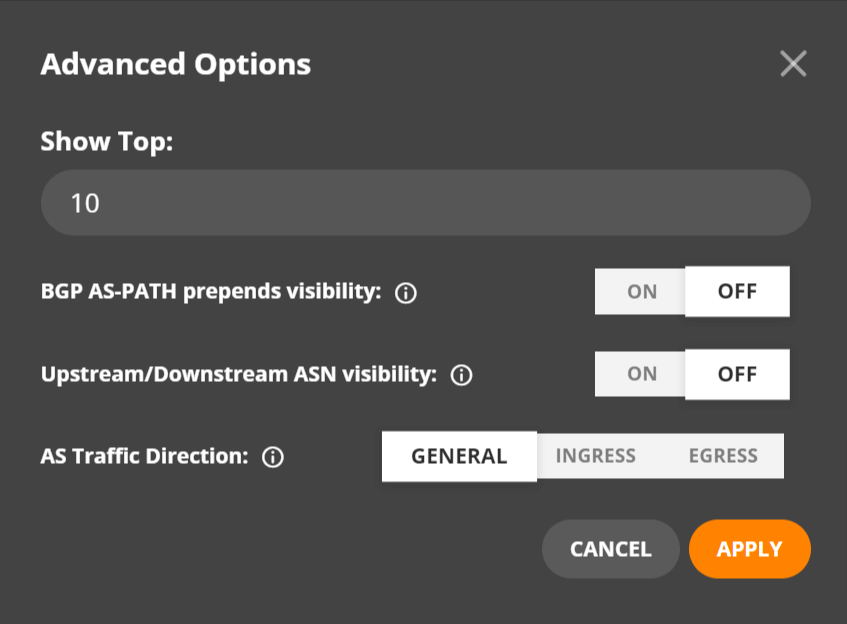

Click “Advanced Options” to increase/decrease the number of BGP paths visible on the diagram or to show/hide the AS path prepends as well as the upstream/downstream ASNs info.

advanced-options

2.5 Alerts

NFA lets you set up a robust and customizable alert system that can proactively notify you when important conditions are detected in your network traffic data. You can configure alerts based on different characteristics and parameters of your network traffic: volume changes, frequency, specific traffic type existence, duration, baseline or a complex combination of such characteristics.

2.5.1 Creating Alerts

1. Go to Alerts > My Alerts and click the “Create New Alert” button.

2. Enter a meaningful Name and Description for the Alert. Select an appropriate Priority Level: Low, High or Critical.

2-5-1-creating-alerts-1

3. Specify Alert Trigger Conditions by adding a single or multiple trigger Rules.

2-5-1-creating-alerts-2

When setting up numerous Rules with complex logic, checkmark and fill out the corresponding “Use Complex Logic” field. Hit Apply.

2-5-1-creating-alerts-3

4. When relevant, checkmark and indicate the time interval during which the condition should exist for an Alert Notification to be sent. Alternatively, checkmark and specify the number of times an alert condition should change its state to “True” (e.g. Abnormal traffic behavior detection scenario) within a specific time interval for the Alert Notification to be sent. Proceed to Next Step.

2-5-1-creating-alerts-4

5. On the Alert Details page, select if you’d like the alert to be activated immediately or at a later date/time. Indicate the time interval between notifications, alert reset conditions and snooze options to reduce alert fatigue.

2-5-1-creating-alerts-5

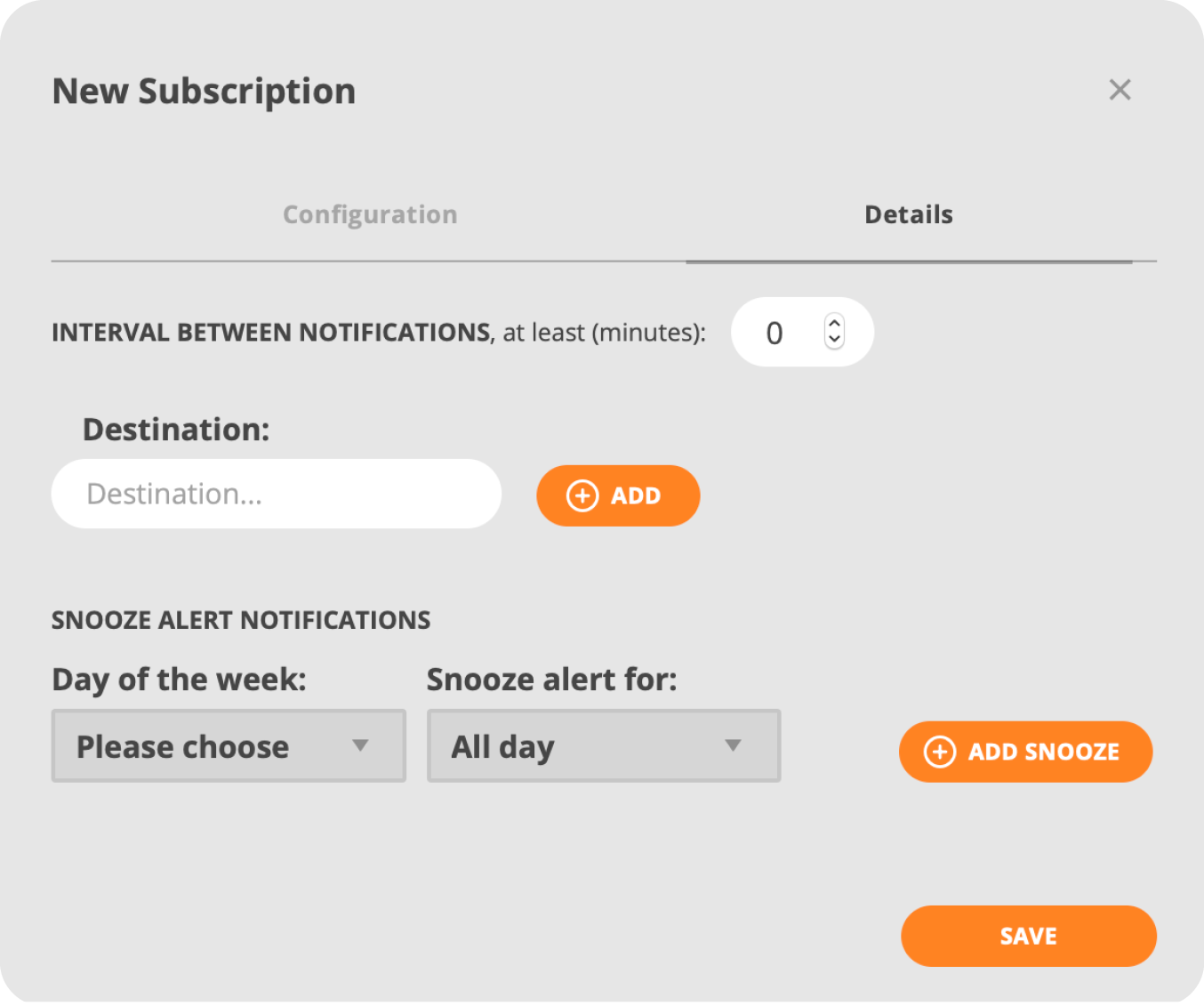

6. Indicate email(s) or Slack channel you’d like the Alert Notifications to be sent to and proceed to the Next Step.

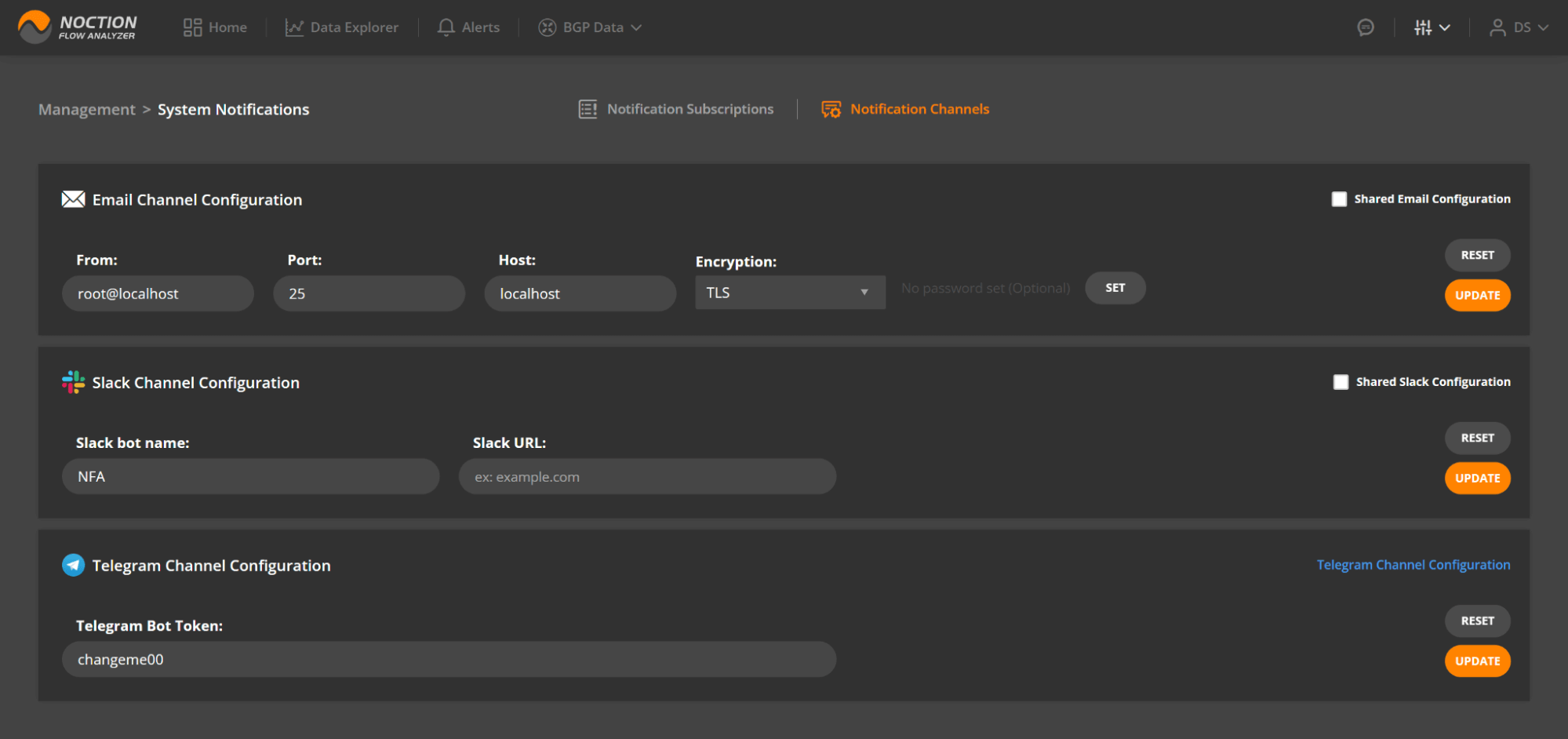

Note:  The notification channels must be properly set up from the Management > System Notifications > Notification Channels section for users to receive alert notifications.

7. Review your Alert details, Notification Channels and Save Alert.

2.5.2 My Alerts

My Alerts section contains a list of Alerts that have been created by your NFA users. Depending on the user access level you can edit, duplicate, delete alerts or turn them on/off.

user access level

2.5.3 Active Alerts

Active Alerts section allows you to view the triggered alert details, triggered alert date/time and allows you to reset (acknowledge) alerts.

active alerts
Note: When you reset (acknowledge) an alert you are taking ownership of it. This means you are aware of the conditions which triggered an alert and are taking action to solve the issue.

Follow your company’s guidelines on further actions once you acknowledge/reset a triggered alert. Acknowledged/Reset triggered alerts will be flagged with your user name and moved to the History of Alerts section.

All triggered alerts in NFA show up with UTC timestamps. This is specifically useful for teams using NFA from multiple geographical time zones.

2.5.4 History of Alerts

All triggered alerts are saved in the History of Alerts section. Use the available options to search and sort the alert incidents.

history of alerts

3. Management

3.1 Inventory

The Inventory section accumulates information about all types of network devices being used in NFA and assigns them meaningful names. Devices must be assigned to locations/sites to further enhance NFA’s grouping and filtering capabilities.

inventory

3.1.1 Adding Devices

To add a new device, go to Management > Inventory. Click the “ADD DEVICE” button in the top right corner. A dialog box will appear and ask to provide the following information: Device Name, Device Description, Device Type, and Exporter IP.

Specify if you’d like to override the flow sampling rate for the device you are adding. Define and set up the data origin (Flow, BGP, or the Internal Database) priority for a distinct set of attributes. Click “NEXT STEP” to proceed.

3-1-1-adding-device-1

Select an existing location for your device from the dropdown menu or choose to “Create New Location”. Proceed to the “NEXT STEP

3-1-1-adding-device-2

Enabling BGP data export from the device you are about to add is optional.

First, configure an iBGP or eBGP session between NFA and your router(s).

Next, fill out both OUR AS and PEER AS fields under the BGP settings tab for eBGP. With eBGP, the route-reflector does not need to be configured, and the router side just needs to be set up as though it’s a transit customer. If OUR AS field is left blank, an iBGP session will be established.

The BGP SESSION control is set to ON by default.

3-1-1-adding-device-3

NFA allows you to use the BGP data from another device that is already set to peer with NFA. For this to happen, select the corresponding radio button and an existing device from the dropdown list. Proceed to the “NEXT STEP

3-1-1-adding-device-4

Feel free to indicate a list of upstream/downstream ASNs specific to your network. The user-defined upstream/downstream lists can be set for each device individually or per a particular location.

3-1-1-adding-device-5

Provide optional SNMP details for NFA to be able to poll any device that supports MIB-II (a standard MIB), get interface names and descriptions, and monitor bandwidth usage on each interface.

Both SNMPv2c and SNMPv3 can be defined. Since SNMPv3 supports authentication and encryption, we recommend using this version when possible. Once set up, interface names and descriptions will appear as the “narrow by” options in NFA’s Data Explorer section.

snmp tab

3.1.2 Managing Devices

All devices added to NFA are listed under Management > Inventory. Devices are grouped by location. Small icons next to Flow, BGP and/or SNMP indicate their state. Click a small arrow next to the device name to see the additional information such as the Exporter IP, Sample rate, Flow type and Flow rate or turn ON/OFF the BGP session or SNMP.

Managing Devices SNMP

3.1.3 Deleting Devices

To delete a device you’ll need to deactivate it first. Click the OFF switch for a particular device. Next, click the delete icon. A dialog box will appear asking you to confirm the deletion.

deleting devices

3.2 Configuration Settings

NFA has a large set of configuration settings available in the front end to fine-tune the system’s behavior.

NFA configurations settings

All parameters are preset with the default values and are organized in groups:

API:

  • SSL – Enables/disables SSL support
  • SSL Redirect – Enables/disables SSL redirect from a non-SSL port
  • SSL listening IPv4/IPv6 address – SSL (HTTPS) listening IPs
  • SSL listening port – SSL (HTTPS) listening port
  • Non-SSL IPv4/IPv6 listening address – Non-SSL (HTTP) listening IPs
  • Non-SSL listening port – Non-SSL (HTTP) listening port
  • Front-end access restriction – Enables/disables NFA front-end access restriction
  • Allowed IP addresses – Lists the IPs or Subnets with access to the NFA frontend

Flow Collector:

  • NetFlow/J-Flow/NetStream/IPFIX listening port – Port on which the collector listens for NetFlow/JFlow/Netstream/IPFIX packets.
  • sFlow listening port – Port on which collector listens for sFlow packets
  • Buffer size (packets) – The incoming packets buffer size
  • Flow stream stop event threshold (seconds) – If flows stream was stopped, it defines the period of time after which FlowStreamStop event would be sent.
  • Extended exporter address determination logic – Enables/Disables extended exporter address determination logic using IPFIX/NetFlow informations elements: 403:originalExporterIPv4Address, 404:originalExporterIPv6Address, 130:exporterIPv4Address, 131:exporterIPv6Address
  • BGP attributes Caching – Enables/Disables BGP attributes caching
  • BGP Attributes cache size (in number of entries) – Specifies the maximum number of cache entries in BGP attributes requester cache
  • BGP attributes cache TTU (Time to Use) – Specifies the maximum number of seconds for TTU in BGP attributes requester cache of an entry
  • BGP attributes related requests timeout (milliseconds)
  • Accept flow records from enabled devices only – when enabled, NFA accepts flow records sent by exporter IP of the configured devices only

BGP:

  • KeepAlive message interval (seconds) – The interval between two consecutive BGP keepalive messages
  • Hold time interval (seconds) – Specifies how long NFA will wait for incoming BGP messages before it assumes the neighbor is dead.

LOGS:

  • APId log level – Specifies the log level for APId. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • Flowd log level – Specifies the log level for Flowd. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • Aggd log level – Specifies the log level for Aggd. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • BGPd log level – Specifies the log level for BGPd. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • Alertd log level – Specifies the log level for Alertd. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • Pushd log level – Specifies the log level for Pushd. The drop-down menu lists log levels in order, from most severe to least severe ones.
  • SNMPd log level – Specifies the log level for SNMPId. The drop-down menu lists log levels in order, from most severe to least severe ones
  • NAPId log level – Specifies the log level for NAPId. The drop-down menu lists log levels in order, from most severe to least severe ones

STATS:

  • Collector data1 granularity (minutes) – Specifies the aggregation granularity for data stored in flows1 table
  • Collector data2 granularity (minutes) – Specifies the aggregation granularity for data stored in flows2 table
  • Collector data3 granularity (minutes) – Specifies the aggregation granularity for data stored in flows3 table
  • Collector data1 keep time (minutes) – Specifies the time for which to keep data in flows1 table
  • Collector data2 keep time (minutes) – Specifies the time for which to keep data in flows2 table
  • Collector data3 keep time (minutes) – Specifies the time for which to keep data in flows3 table
  • BGP data keep time (days) – Specifies the time to keep data in the BGP table (used for BGP Report).
Note: Keep times indicated must be divisible between the tables.

RESET DEFAULTS – Changes all settings back to the default values.

REPORT CACHE:

  • Query caching – Enables/disables caching of the query results
  • Cached query lifetime (minutes) – Specifies the lifetime of the cached query
  • Query cache max size (megabytes) – Specifies the maximum cache size

SNMP:

  • Time between successive interface info requests (seconds) – The time interval between requests for the available interface details sent out by NFA.
  • SNMP requests timeout (seconds) – The time interval that NFA waits for a response message from an agent. Increase the SNMP timeout value if there is higher latency in your network.
  • Number of retries before failing a request – If a response from an SNMP Agent is not received before the timeout, then NFA retries the request the indicated number of times before reporting a failure.
  • Maximum number of repetitions for GetBulk request – value for max repetitions field in the GETBULK PDU.

3.3 Custom Groups

Custom Groups allow you to streamline and logically organize your network analysis experience by creating unique sets of data parameters to personalize your view in many areas of the Noction Flow Analyzer. For instance, you can create custom IP groups for your company’s specific departments, various geographic locations, or any other administrative/business requirement.

custom groups

Once created, these can be used as custom filters when running queries in Data Explorer, creating widgets, setting up alerts, etc.

nfa custom groups

3.4 System Notifications

3.4.1 System Notifications Overview

System notifications are used to communicate to users the state of their NFA instance and/or any of its components. They are triggered by a range of preconfigured system-level events.

The list of events that can generate notifications is provided below.

Once an NFA component is started, stopped or reconfigured it raises the following events:

  • Component Start: OK
  • Component Start: Error
  • Component Stop: OK
  • Component Stop: Error
  • Component Reconfig: OK
  • Component Reconfig: Error
  • Config Validation: OK
  • Config Validation: Error

BGPd raises the following events when BGP sessions are established/disconnected:

  • NFA BGP session Disconnected
  • NFA BGP session Established

FLOWd raises the following events when Flow Stream is Started/Stopped:

  • Flow Stream Start
  • Flow Stream Stop

3.4.2 System Notification Channels Configuration

In order for Notifications to be delivered correctly, the corresponding email or slack channel configuration shall be provided. Go to Management > System Notifications > Notification Channels.

system notifications channel configuration

For the email channel configuration, specify the actual Email server and Server port as well as the sender of email messages that will show in the receiver’s inbox. For Slack channel configuration, specify the Slack bot name and the Slack URL.

3.4.3 System Notification Subscriptions

System Notifications are sent only if a valid subscription to events has been created.

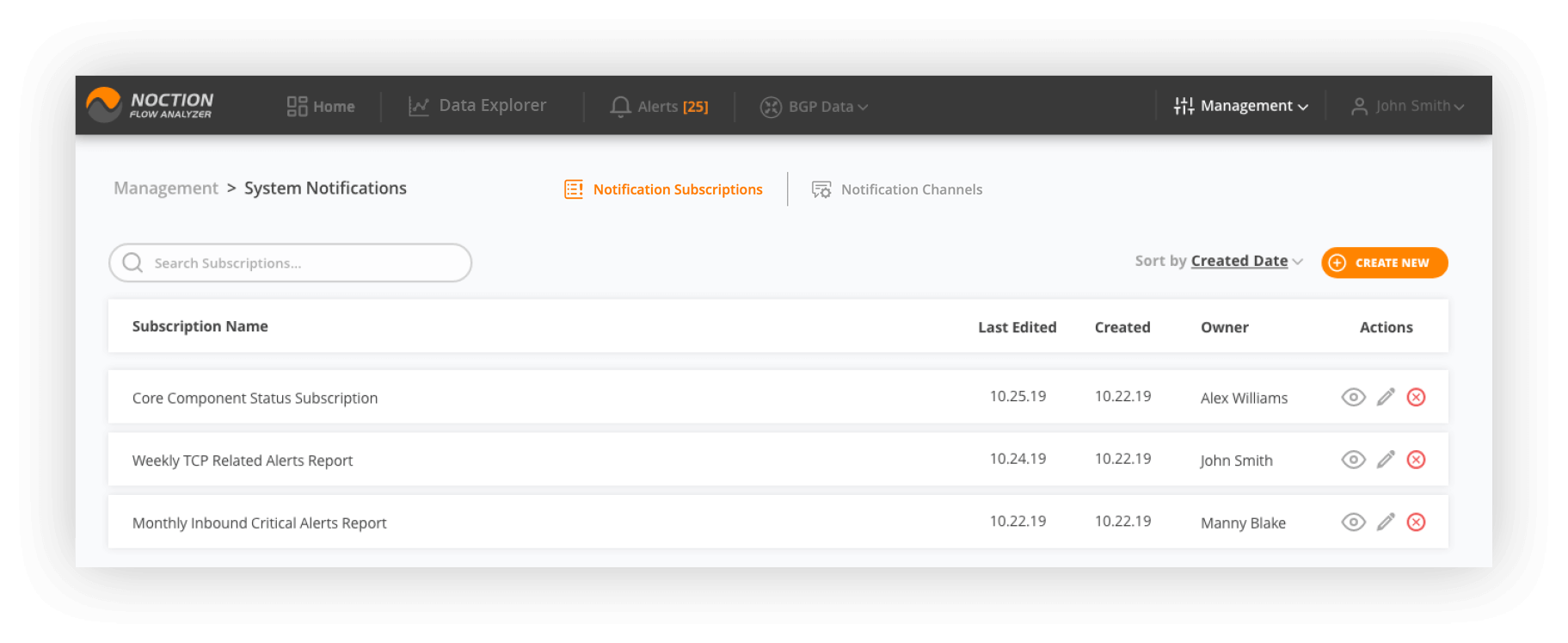

Find the list of your active subscriptions under Management > System Notifications > Notification Subscriptions. Search through existing subscriptions, sort, view, edit, or delete them.

Notification Subscriptions

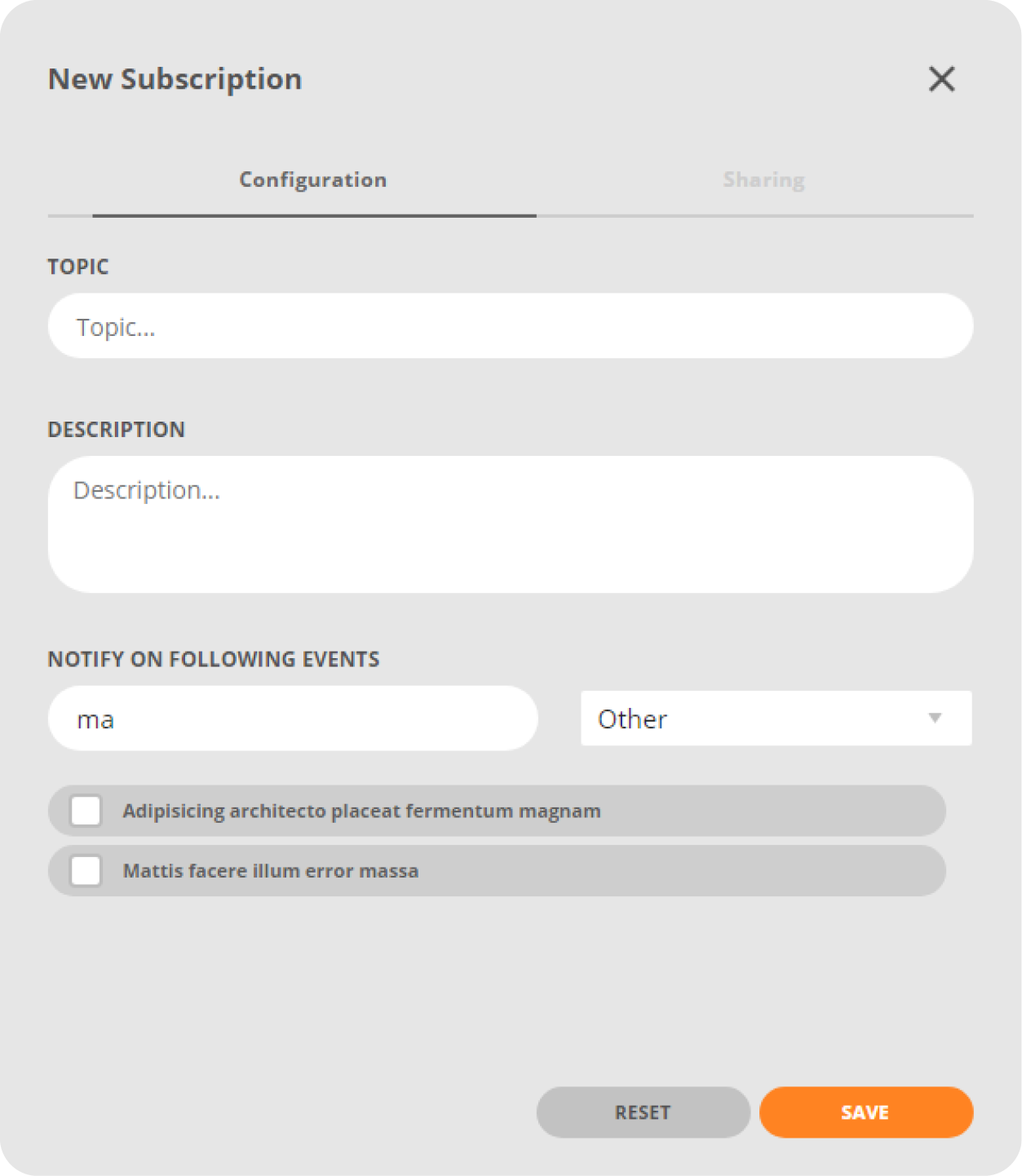

To create a new subscription click the “Create New Subscription” button in the top right corner. A popup window will appear. Under the ”Configuration” tab, provide your subscription topic and description. Choose the proper group or use the quick search option to find and checkmark the desired event(s). Hit “Save”.

config

Now, under the “Details” tab, introduce the “Interval between notifications” as well as the destination email or Slack channel. Optionally, specify when to Snooze Notifications if desired and hit “Save”.

details

3.4.4 Notification Text Details

When a subscribed event is fired NFA will send notifications. The notification email will consist of the following:

  1. Subscription topic as specified in the subscription
  2. From email address – as configured in the email channel
  3. Time – date-time of the last event that caused the notification. In case of rate limitation, this might be older than the time of the email.
  4. Textual description of the event and any related details.
  5. Older events which have been retained due to rate limitations. Keep in mind that all past events are aggregated into a single email.

3.5 User Management

NFA includes a User Management function accessible under Management main menu section,
that allows the following:

  • review and filter the list of users
  • edit and delete existing user records
  • add new users

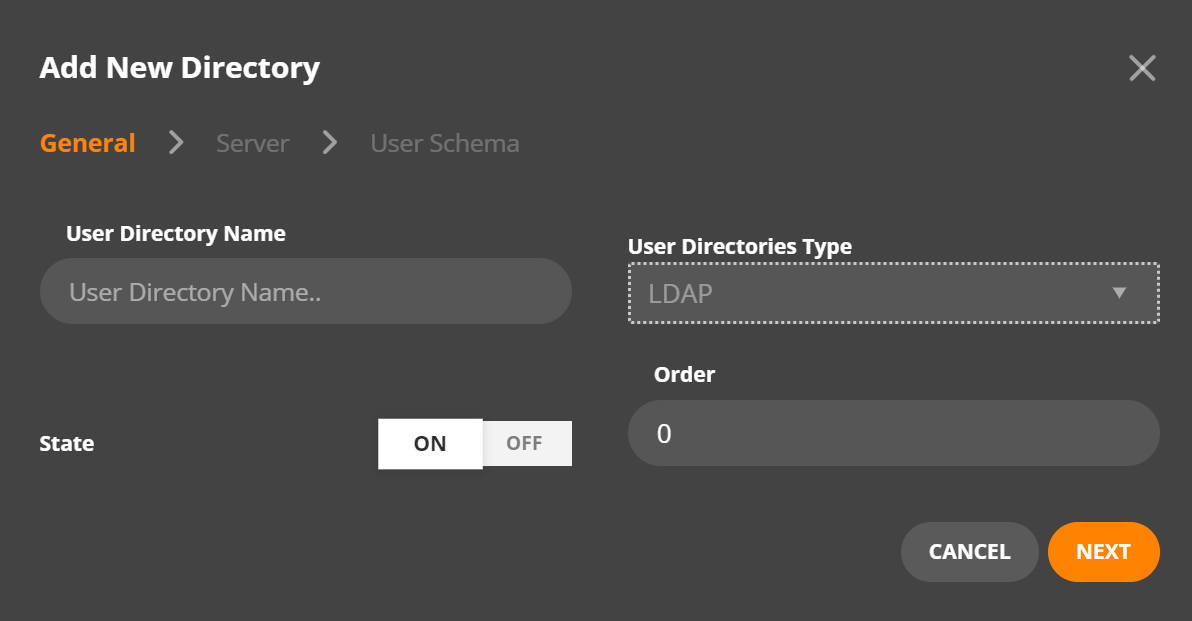

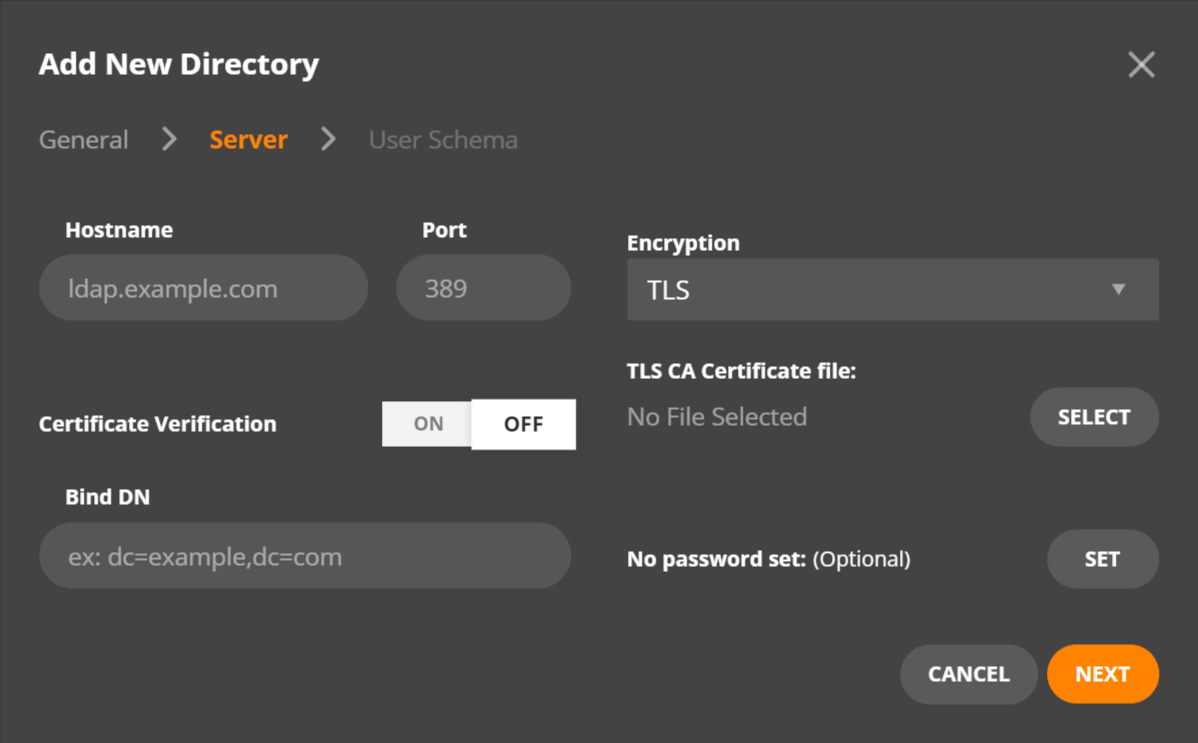

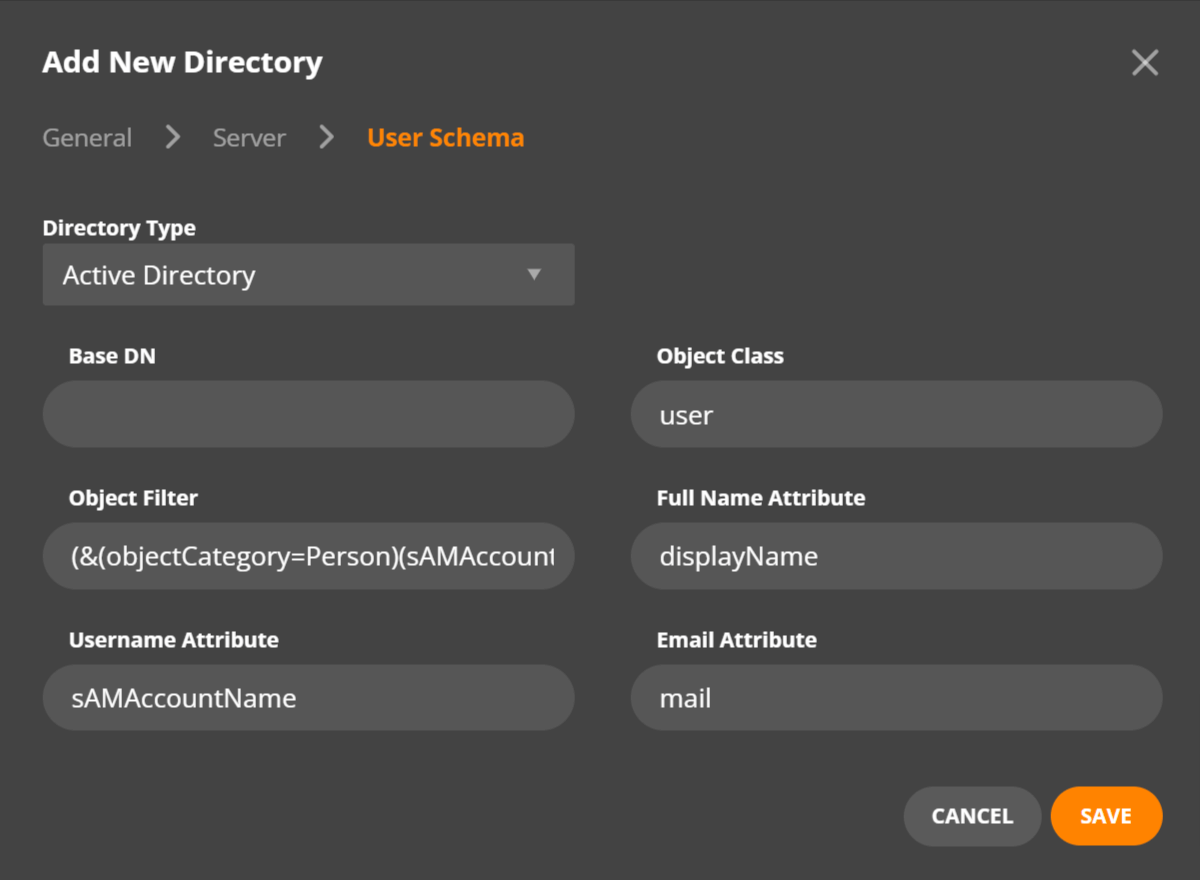

user management
Note: User Management function is available only to users with administrative privileges.

3.6 License Status

NFA is a licensed product and requires users to obtain and register their license in the application.

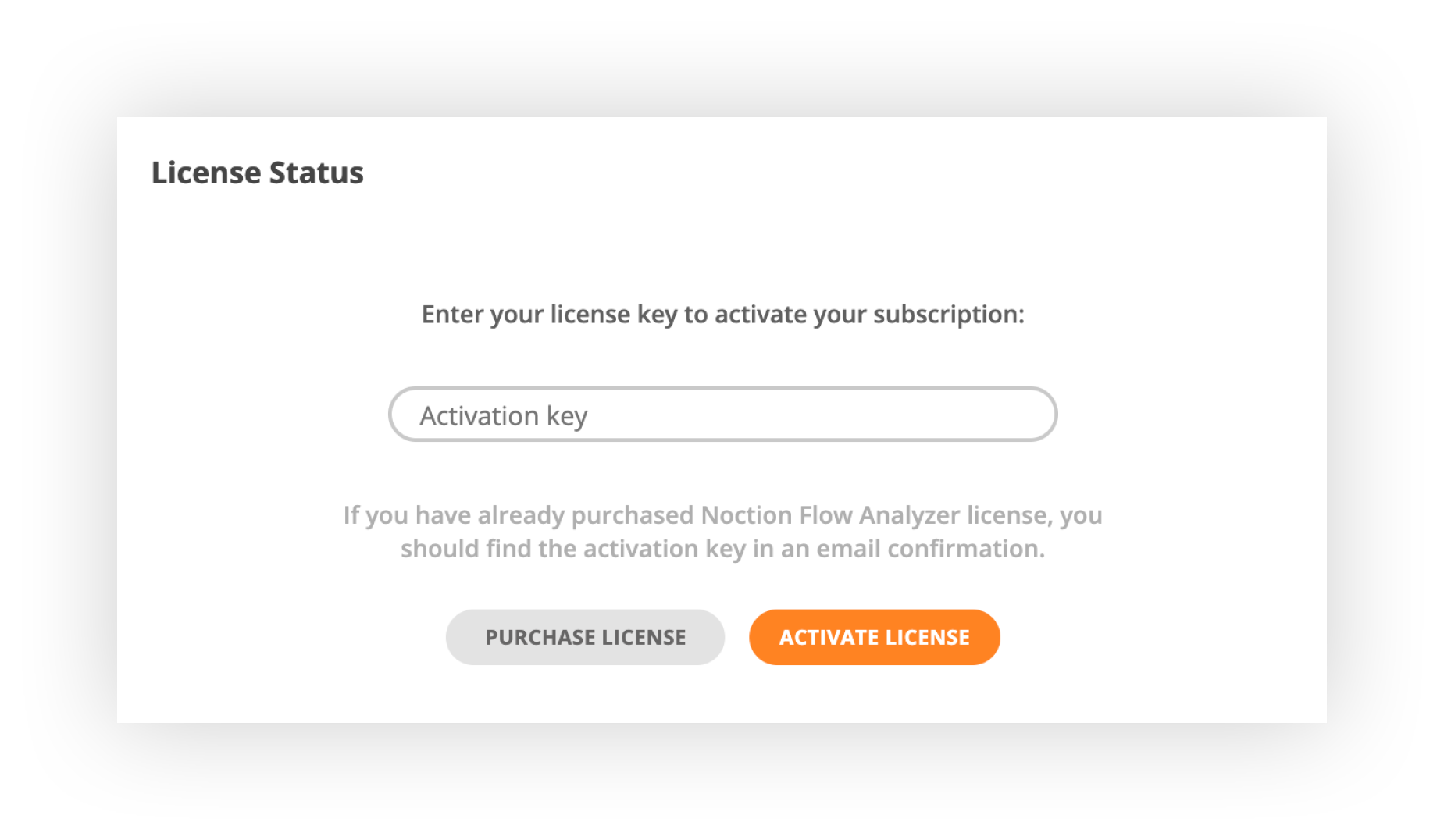

The license status is accessed by navigating to Management > License.

NFA license

License status offers:

  • information about current license status and the remaining days till its expiration
  • option to activate a license by means of an activation key

PURCHASE LICENSE redirects users to Noction’s billing system to place an order for a license.

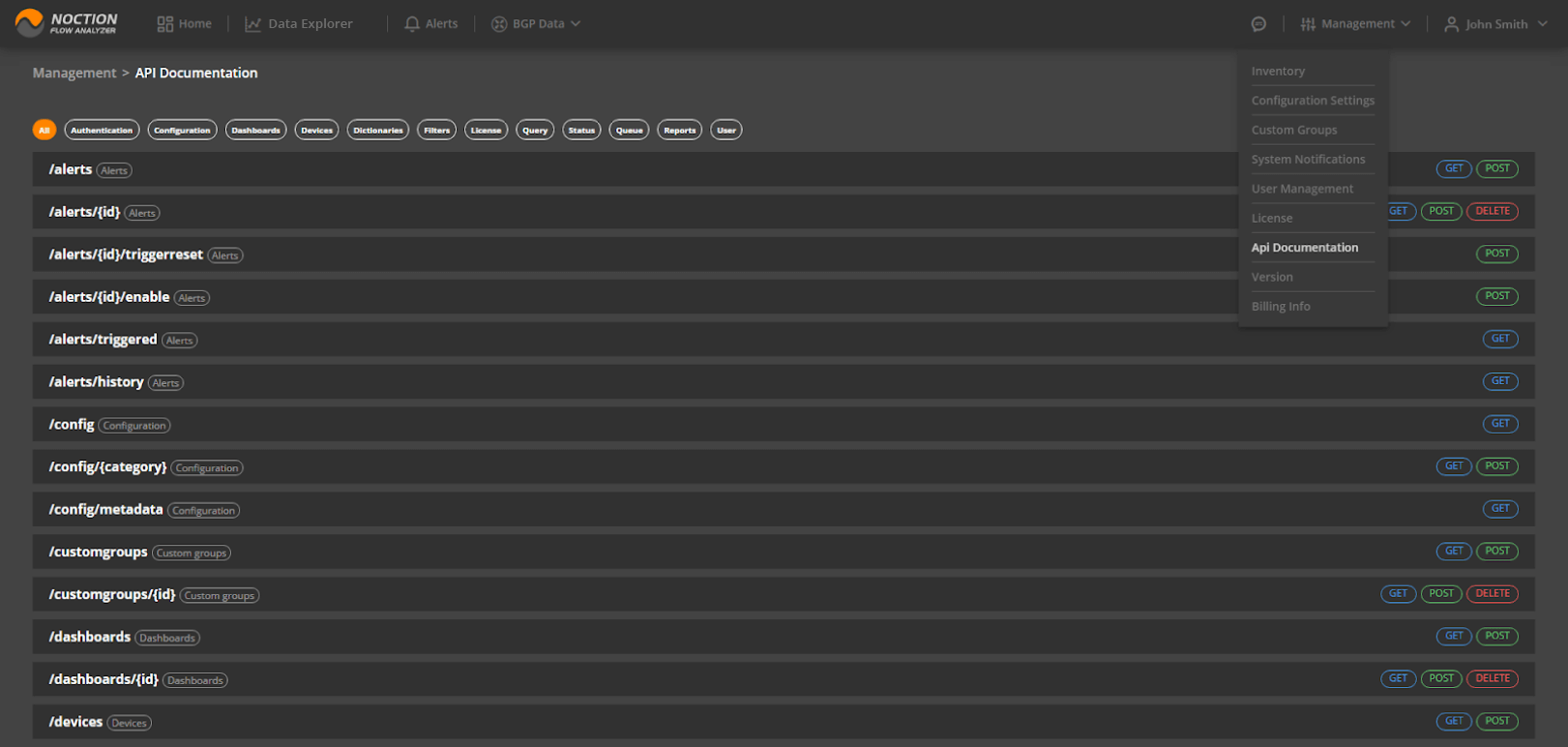

3.7 API Documentation

Noction Flow Analyzer API provides a wide range of capabilities to access NFA data. It lets users read all the resources including dashboards, widgets, devices, alerts, filters, reports, and more. Some of these resources are read-only and some can also be created/edited/deleted via the API. The API documentation is available via the NFA’s frontend under the Management > API Documentation section.

API Documentation

3.8 NFA Version

NFA Version info is available to be able to manage the change and configuration of the application.

3.9 Changelog

The Changelog section is available under Maintenance > Changelog. It offers a complete list of improvements and bug fixes per each NFA version.

3.10 Billing Info

To access your billing info, go to Management > Billing. The link will redirect you to the NFA Billing page. Use the credentials you’ve specified when initially requesting an NFA license to login.

4. User Profile

The user profile helps in associating characteristics with a specific user and helps to ascertain the interactive behavior of the user along with preferences.

Users with administrative rights have access to and can edit any user profile. Users without admin rights have access to and can edit their user profile only.

User profile offers this function to:

  • update a user’s attributes and preferences including name, email, date format, time format, etc.
  • change the user’s password with hints regarding password strength and confirmation mismatch.

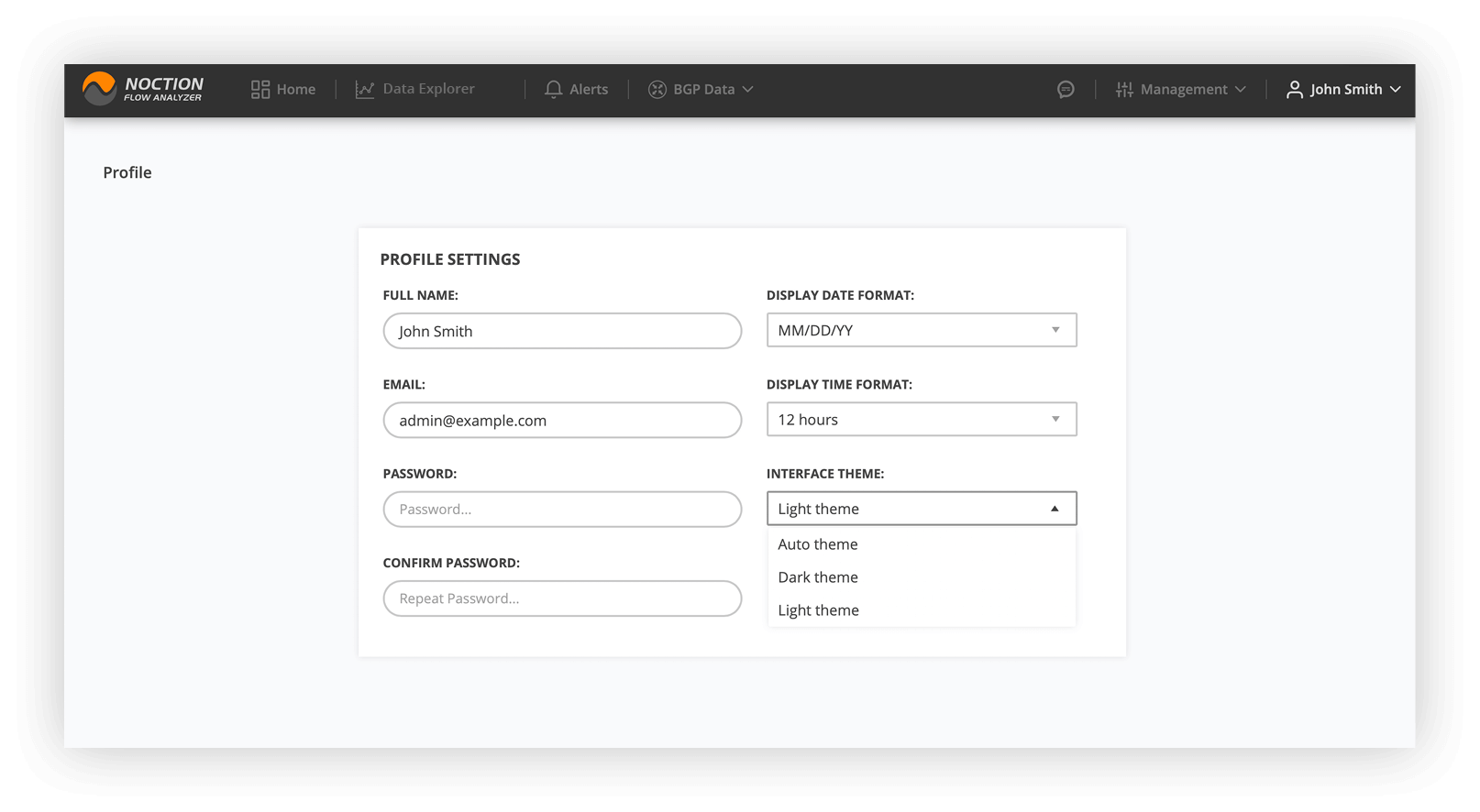

The interface color theme can be changed here as well.

profile

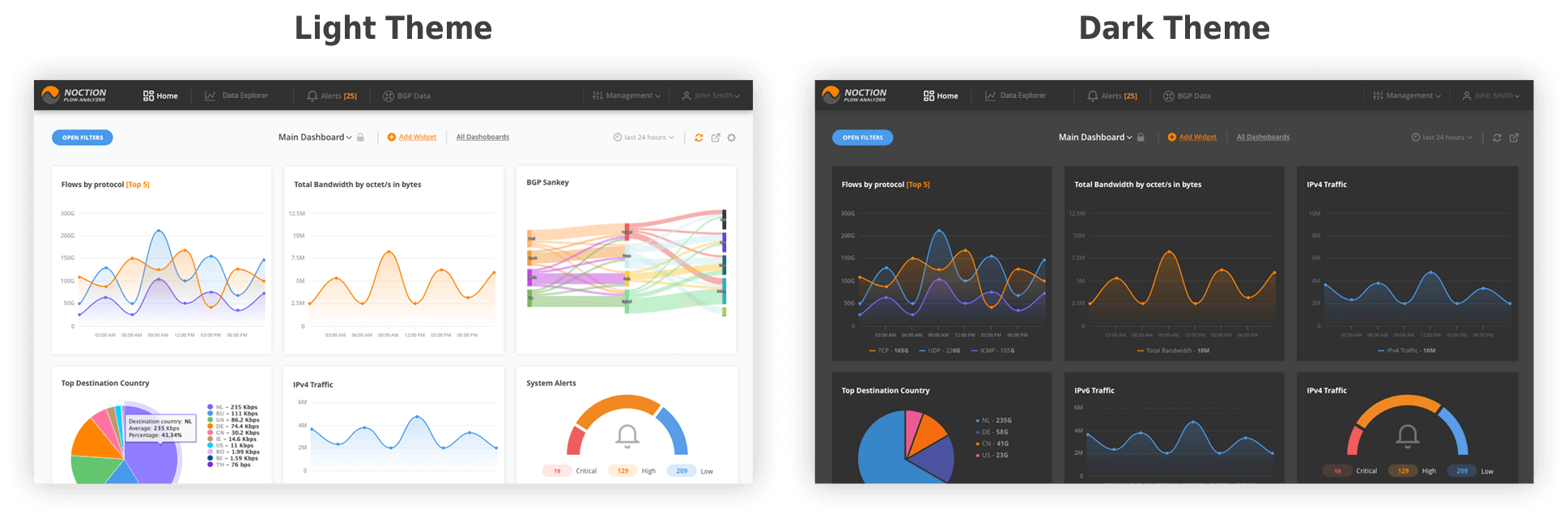

Choose between the Light, Dark or Auto options. When the Auto option is selected, NFA will follow your device’s default theme.

dark light

5. System Requirements



Hardware Requirements:

  • x86_64 architecture
  • Minimum 4x core CPU (8x core CPU recommended), SSE4.2 support
  • Minimum 32GB of RAM (64GB RAM recommended; 128GB RAM – optimal)
  • Minimum 250GB SSD storage (500GB SSD storage recommended) allocated to the /var partition



Software Requirements:

  • Ubuntu 20.04 LTS

Please note that NFA can also be installed on a server running CentOS 7 x86_64 Minimal – Clean Install or RHEL 8. The minimum system requirements assume default configuration. Significantly increasing the flow collection rate might cause additional load on a server, thus requiring extra memory or a larger CPU.

Hardware resources depend on the amount of flows/s exported to NFA. For each additional 1,000 flows/sec, 1 GB of RAM and 0.2 of vCPU are required. An additional 2 GB of RAM and 4 vCPU are required when the BGP add-on is used. Values are directly proportional: RAM and vCPU numbers per 1,000 flows/sec.

For instance: 40,000 flows/sec will require 40 GB of RAM and 8 vCPU, plus 2 GB of RAM and 4 vCPU in case a BGP add-on is used.

6. Support

Noction support team is available 24/7. Please contact our support team by emailing support@noction.com or by calling +1 (650) 903-7028.

7. Flow export configuration on network devices

Cisco XE:

The NetFlow infrastructure is based on the configuration and use of the following maps:

  • Exporter Map
  • Sampler Map
  • Flow Monitor Map

1. Exporter Map. To configure the Exporter map, you need to define the destination (flow collector), the source interface, the port used for exporting, the version of NetFlow, and the timeout rates.

router(config)# flow exporter-map EM
router(config-fem)# destination 10.1.1.5
router(config-fem)# source gi0/0
router(config-fem)# transport udp 2055
router(config-fem)# version v9
router(config-fem)# template data timeout 60
router(config-fem)# options interface-table timeout 60
router(config-fem)# exit

2. Sampler Map (defines the sample rate):

router(config)# sampler-map SM
router(config-sm)# random 1 out-of 1000
router(config)# exit

3. Flow Monitor Map. The Flow Monitor map defines the cache timeout values and associates the
exporter map with this map.

router(config)# flow monitor-map FMM
router(config-fmm)# record ipv4
router(config-fmm)# exporter EM
router(config-fmm)# cache timeout active 60
router(config-fmm)# cache timeout inactive 60
router(config-fmm)# exit

4. Apply the maps to the interfaces.Now that you have your maps defined, you need to apply the
Flow Monitor and Sampler maps to each of the provider interfaces:

router(config)# interface Gi0/0
router(config-if)# flow ipv4 monitor FMM sampler SM egress
router(config-if)# exit

Cisco XE:

flow exporter EXPORTER-1
 destination 172.16.10.2
 export-protocol netflow-v9
 transport udp 2055
 exit
!
flow record v4_r1
match ipv4 tos
match ipv4 protocol
match ipv4 source address
match ipv4 destination address
match transport source-port
match transport destination-port
collect counter bytes long
collect counter packets long
!
flow monitor FLOW-MONITOR-1
 record v4_r1
 exporter EXPORTER-1
!
interface GigabitEthernet 0/0/0
 ip address 172.16.6.2 255.255.255.0
 ip flow monitor FLOW-MONITOR-1 input

Cisco IOS:

ip flow-export version 9
ip flow-export destination $NFA_IP 2055
interface $Interface_to_ISP1
 ip flow ingress
 ip flow egress

jFlow-ipfix:

chassis {
    fpc 0 {
        sampling-instance nfa-instance;
    }
}
interfaces {
    xe-0/0/0 {
        unit 0 {
            family inet {
                sampling {
                    input;
                    output;
                }
            }
        }
    }
}
forwarding-options {
    sampling {
        instance {
            inst1 {
                input {
                    rate 1024;
                }
                family inet {
                    output {
                        flow-server X.X.X.X {
                            port 2055;
                            version-ipfix {
                                template {
                                    ipfix-templatev4;
                                }
                            }
                        }
                        inline-jflow {
                            source-address Y.Y.Y.Y;
                        }
                    }
                }
            }
        }
    }
}
services {
    flow-monitoring {
        version-ipfix {
            template ipfix-templatev4 {
                flow-active-timeout 60;
                flow-inactive-timeout 60;
                template-refresh-rate {
                    seconds 60;
                }
                ipv4-template;
            }
        }
    }
}

X.X.X.X – IP address of NFA server
Y.Y.Y.Y – source IP address of flow packets (router IP address)

jFlow-v9:

chassis {
    fpc 0 {
        sampling-instance nfa-instance;
    }
}
interfaces {
    xe-0/0/0 {
        unit 0 {
            family inet {
                sampling {
                    input;
                    output;
                }
            }
        }
    }
}
forwarding-options {
    sampling {
        instance {
            nfa-instance {
                input {
                    rate 1024;
                }
                family inet {
                    output {
                        flow-server X.X.X.X {
                            port 2055;
                            version9 {
                                template {
                                    v9-templatev4;
                                }
                            }
                        }
                        inline-jflow {
                            source-address Y.Y.Y.Y;
                        }
                    }
                }
            }
        }
    }
}
services {
    flow-monitoring {
        version9 {
            template v9-templatev4 {
                flow-active-timeout 60;
                flow-inactive-timeout 60;
                template-refresh-rate {
                    seconds 60;
                }
                ipv4-template;
            }
        }
    }
}

X.X.X.X – IP address of NFA server
Y.Y.Y.Y – source IP address of flow packets (router IP address)

sFLOW-Arista:

!
sflow run
sflow source $SOURCE
sflow destination $DESTINATION $PORT
sflow polling-interval 10
sflow sample $SAMPLING-RATE
!

By default the global enabled sflow will export the flow from all interfaces. To disable the flow export on specific interface the #no sflow enable# is used in interface config mode #(config-if)

Mikrotik:

ip traffic-flow set interfaces=$ISP cache-entries=1M enabled=yes active-flowtimeout=5 inactive-flow-timeout=60
ip traffic-flow target set dst-address=$NFA_IP port=2055 src-address=$ROUTER_IP
version=9 v9-template-refresh=100 v9-template-timeout=300

Huawei NetStream:

1. Configure NetStream sampling

[Router] interface <$upstream_interface>
[Router-$upstream_interface] ip netstream sampler fix-packets 1200 inbound
[Router-$upstream_interface] ip netstream sampler fix-packets 1200 outbound
[Router-$upstream_interface] quit

2. Configure NetStream flow aging

[Router] ip netstream timeout active 20
[Router] ip netstream timeout inactive 100
[Router] ip netstream tcp-flag enable

3. Configure NetStream original flow statistics exporting

[Router] ip netstream export source $router_source_IP
[Router] ip netstream export host $NFA_IP 2055

4. Configure the version for the exported packets

[Router] ip netstream export version 9

5. Enable flow statistics collection on the interface

[Router] interface <$upstream_interface>
[Router-$upstream_interface] ip netstream inbound
[Router-$upstream_interface] ip netstream outbound
[Router-$upstream_interface] quit
