Tier 1 carrier performance: April, 2017 snapshot

Tier 1 carrier performance: April, 2017 snapshot

    This analysis covers widely used Tier 1 carriers performance results in the US for the month of April 2017. Rare datapoints from distant locations have not been taken into consideration.

    The presented analysis is based on more than 713 million successful probes that span the entire month. All data is aggregated per carrier on a daily basis and accounts for many thousands of successful probes. A control group (labeled C) is used as a base of comparison. The control group aggregates the average for all transit providers in a network, including Tier 1 carriers.

    Averages

    average loss and latency

    Fig. 1. Average Loss and Latency in April 2017
    The numbers include a control group C (gray) to allow cross comparison.

    The values for March 2017 are included for cross comparison.

    low latency

    Fig. 2. Average Loss and Latency in March 2017
    The charts include a control group C (gray) to allow cross comparison.


    Average packet loss analysis:

    • NTT and Level 3 kept the leading positions in April as in March. Based on the control group level, better results show Zayo and Centurylink;
    • higher level of average loss has been registered for Hurricane, Telia, Cogent and XO. Hurricane, Telia and Cogent results present a stable trend in terms of packet loss for the last few months, having only minor changes, along the period;
    • significant differences for the distribution of registered average packet loss by Tier 1s in April, when compared to March, have not been registered. Nevertheless, Centurylink improved its results, visibly diminishing the average packet loss.

    When generalizing all registered results, the following can be concluded: average packet loss in April was lower than March for most of the analyzed Tier 1 carriers.

    Average latency analysis:

    • As in March, higher average latency has been registered for: Hurricane, XO, Cogent, GTT and Zayo. Closely to this group is Telia which is suspended between control group level and they;
    • lower average latency has been registered for: Centurylink, NTT and Level 3;
    • a significant change in average latency for the month of April, compared to March, has not been registered. All Tier 1s showed roughly similar results to the previous month. Hurricane, which still remains the worst performing provider in terms of average latency, has succeeded in diminishing its latency level, bringing the results closer to the level of XO and Cogent.

    The charts below illustrate the performance of each carrier in comparison to the control group.

    packet loss and latency in April 2017

    Fig. 3. Better or worse Loss and Latency in April 2017
    The numbers are differences from average control group.

    worse latency

    Fig. 4. Better or worse Loss and Latency in March 2017
    The numbers are differences from average control group.


    In comparison with the control group for the month of April, 2017:

    • NTT, Level 3, Zayo and Centurylink showed better results in terms of Loss
    • Centurylink, NTT and Level 3 demonstrated better results in terms of Latency

    In comparison with the data from March, 2017:

    • NTT has dethroned Level 3 and obtained the leadership position, with the best results in terms of Loss. Zayo shows continuous improvement in terms of loss as well. GTT migrated from the winner group into losers. Telia maintains the poorest results;
    • Centurylink remains the best provider in terms of Latency, followed by XO and Level 3, meanwhile other Tier 1s are underperforming.
    Loss

    For the Loss analysis we use a scatter plot, where average values by control group are assumed on the diagonal while the horizontal and the vertical axis highlight carrier metrics. All datapoints below the diagonal represent the better performing carriers and vice versa.

    packet loss analysis

    Fig. 5. Loss values spread on average diagonal
    Datapoints comparison with diagonal.


    Abnormally large losses are still registered for a large number of datapoints. As was mentioned in previous reports we consider excessive an average above 4.5% packet loss.

    Given the fact that Tier 1 carriers are characterized by both low loss values for some networks and abnormally high losses for other networks, the conclusion is that high loss values are not caused by the carriers themselves but rather are caused by the networks they service Or the networks they peer with. Whether the true cause is poor design, over-provisioned links or deficiencies in peering governance – this report cannot tell. What we can mention is that for many networks, whether permanently or sporadically, there is definitely an opportunity to improve things.

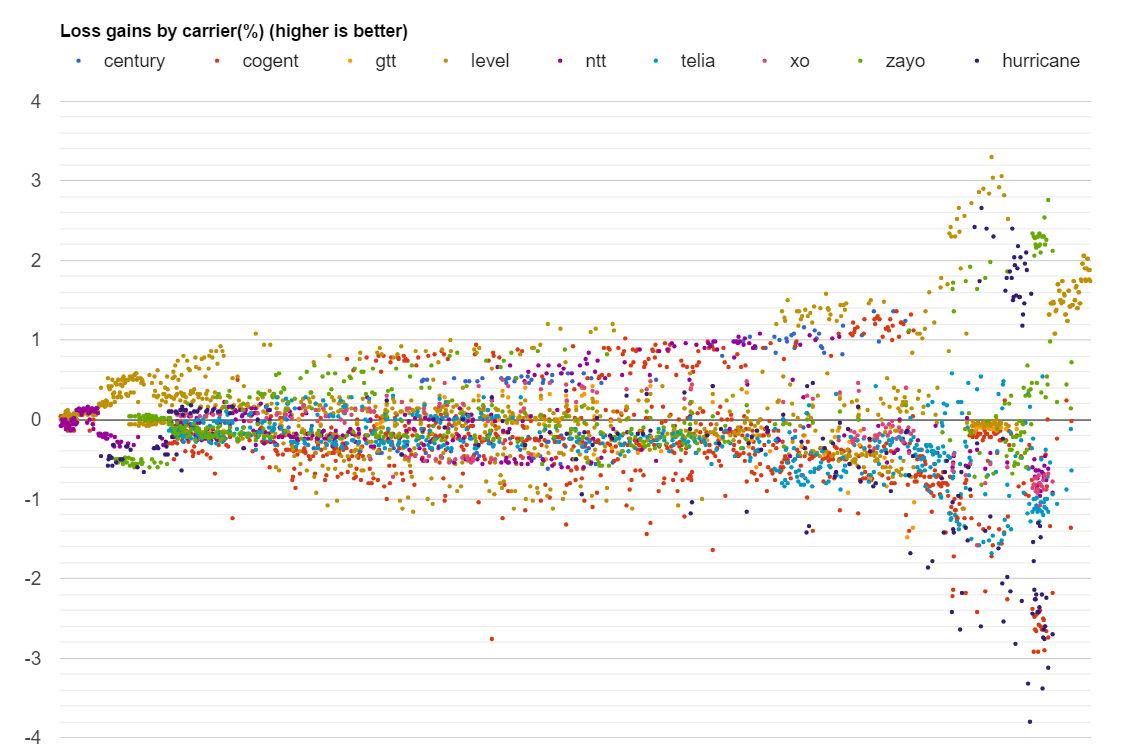

    network loss

    Fig. 6. Better or worse carrier loss (%)
    Average placed on the zero line


    A different representation of the above data places it around the control group (zero line) with gain values by carrier. Values are sorted and charted from left to right by increasing average loss. The chart depicts gains or worsening on a network based on the average control group’s performance – values are shown from left to right following better to worse loss values. The assumption of this analysis is that while a network’s conditions might be better or worse compared to other networks, the conditions tend to be equal across all carriers including the control group. While the carrier’s network is not the culprit causing additional loss, this analysis might be able to suggest whether those carriers peering with remote regions is deficient. Non-systemic issues with carriers will tend to cancel out with values being scattered equally above or below the zero line while systemic issues or gains will have a tendency to place a carrier consistently above or below it. The scatter plot highlights this assumption.

    More so, if we average gains or losses compared with the control group we expect the noise to cancel out.

    datapoint packet loss

    Fig. 7. Average packet loss gains/losses by carrier (April 2017)
    Averages determined for ALL datapoints or a cutoff at 4.5% control group applied.

    average packet loss

    Fig. 8. Average packet loss gains/losses by carrier (March 2017)
    Averages determined for ALL datapoints or a cutoff at 4.5% control group applied.


    As in March, little differences have been registered between the averages determined for ALL datapoints and the ones that were cut off at the applied 4.5% control group. Zayo, went from gains to losses. Meanwhile, XO showed better results both compared to: April’s cut off at 4.5% control group level as well as the March registered level.

    The worst positions show Hurricane, Telia and Cogent. As a result of the applied 4.5% control group to datapoints averages for packet loss, Level 3 position visibly decreased and its leadership became less evident. Much more, after the data set restructuring, Zayo left the group of Tier 1s with better results (Fig. 7).

    Latency

    For Latency analysis we use a similar scatter plot to the one we used for Loss. It displays control group values on the diagonal while highlighting individual carrier measurements on the horizontal and on the vertical axis. Datapoints placed significantly and consistently below the average highlight better performing carriers while datapoints above the average highlight worse than average performance.

    clusters datapoints

    Fig. 9. Carrier latency with average group on the diagonal
    Clusters of datapoints below diagonal highlight better performance


    Based on data points presented in Fig.9 we can conclude the following:

    • NTT and Level 3 were present over the entire graph diagonal and have been showing a latency level higher than 200 ms;
    • Zayo, Cogent, GTT, XO and Centurylink have been mostly present within the latency diapazon of 85 – 180 ms while Telia and Hurricane registered latency up to 200 ms;
    • Telia and Level 3 were the only carriers registered within the diapason that did not exceed 80 ms.

    latency by carrier

    Fig. 10. Average latency gains/losses by carrier Values averaged for the difference between carrier performance and the average group in that network.




    The differences in latency above from the control group are averaged with the expectation that better or worse performance will cancel out if the differences are caused by measurement noise.

    The results show that during April of 2017 in comparison with March 2017:

    • Level 3 drifted to the negative category, adding ~0.6 ms to RTT for each packet a network forwards through these carriers.
    • Hurricane maintained itsleader position in average RTT reducing it by ~2.4ms, followed by Centurylink ~1,8 ms , GTT and XO with ~1,4 ms each.
    Appendix. Carrier Latency (highlighted)

    Latency spread chart highlighting Centurylink.
    latency Centurylink in April

    Latency spread chart highlighting Cogent.
    latency Cogent in April

    Latency spread chart highlighting GTT.
    latency GTT in April

    Latency spread chart highlighting Level 3.
    latency Level3 in April

    Latency spread chart highlighting NTT.
    latency NTT in April

    Latency spread chart highlighting Telia.
    latency Telia in April

    Latency spread chart highlighting XO.
    latency XO latency in April

    Latency spread chart highlighting Zayo.
    latency Zayo in April
    Latency spread chart highlighting Huricane.
    latency Huricane in April

    Loss improvement/worsening highlighting Centurylink datapoints.
    Centurylink datapoints loss in April

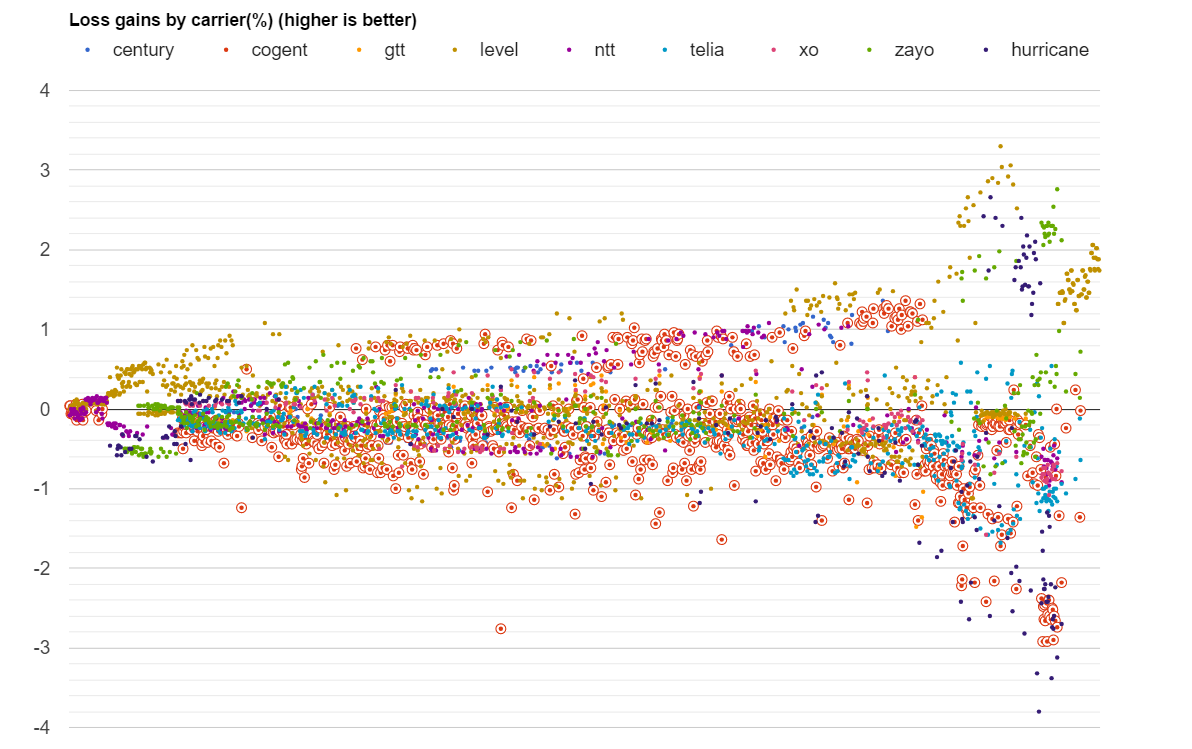

    Loss improvement/worsening highlighting Cogent datapoints.
    Cogent datapoints loss in April

    Loss improvement/worsening highlighting GTT datapoints.
    GTT datapoints loss in April

    Loss improvement/worsening highlighting Level 3 datapoints.
    Level3 datapoints loss in April

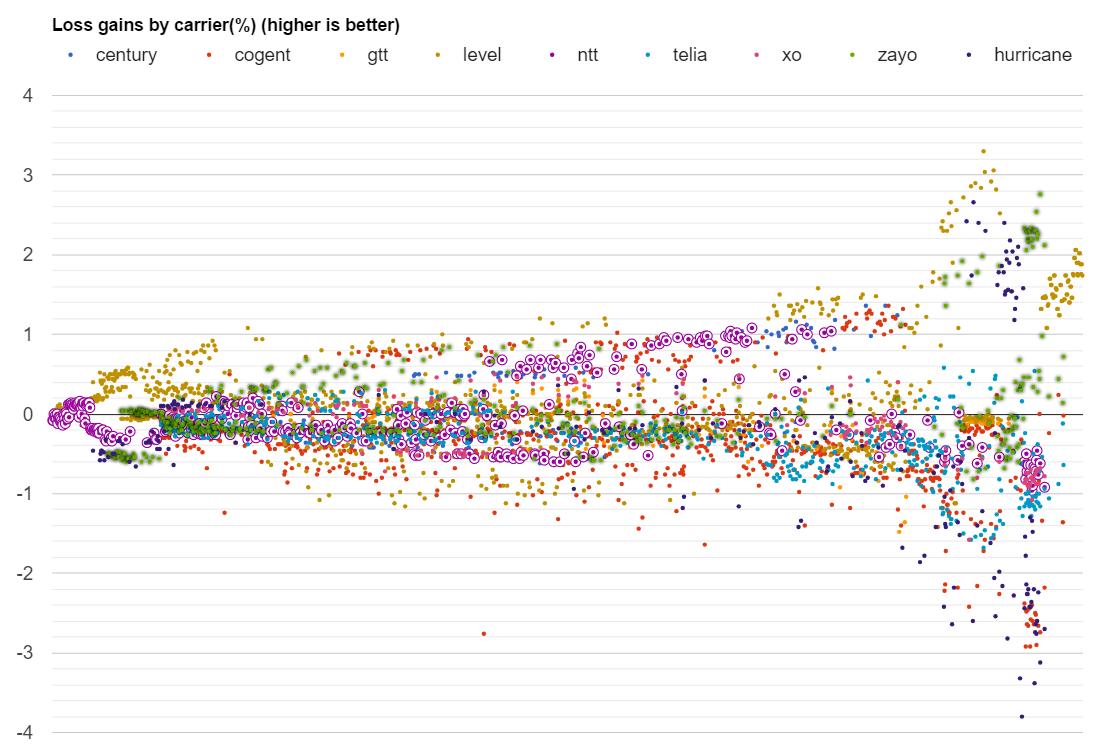

    Loss improvement/worsening highlighting NTT datapoints.
    NTT datapoints loss in April

    Loss improvement/worsening highlighting Telia datapoints.
    Telia datapoints loss in April

    Loss improvement/worsening highlighting XO datapoints.
    XO datapoints loss in April

    Loss improvement/worsening highlighting Zayo datapoints.
    Zayo datapoints loss in April

    Loss improvement/worsening highlighting Huricane.
    Huricane datapoints loss in April




    Disclaimer*: The data presented in this report card is intended for information purposes only and is not to be interpreted as any form of promotion or debasement for carriers herein named. Information is obtained from the Intelligent Routing Platform Lite instances, where the compulsory consent of the legal entities for collection of such information is part of the Terms and Conditions document. For privacy protection, the exact location and number of IRP Lite instances are not provided.
