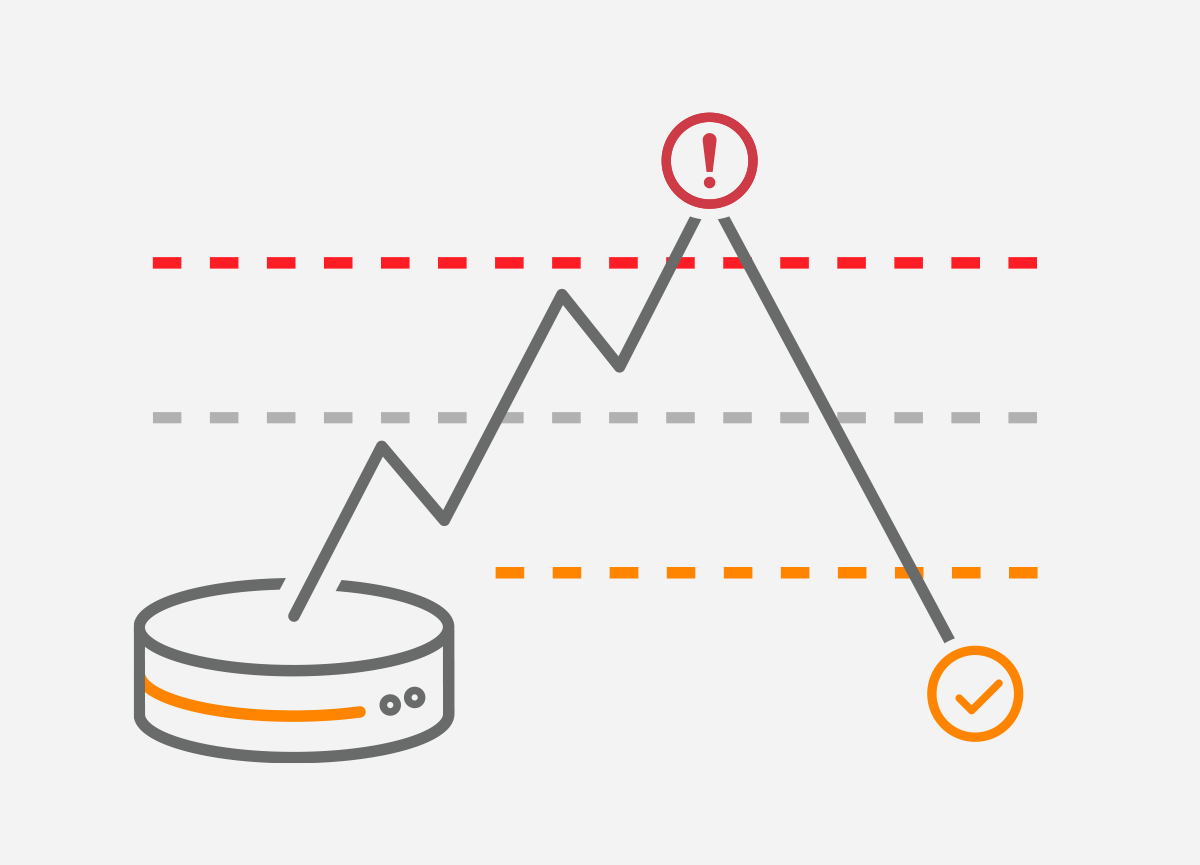

BGP Route Dampening: obsolete or still used in the industry?

BGP route dampeningThe unstable route whose availability alters repeatedly is called a flap. When flaps occur, an excessive number of BGP UPDATE messages are sent to BGP peers which in turn increases the load of the peers and excessively consumes CPU power.  The goal of BGP route dampening when first introduced was to reduce the propagation of flapping routes without affecting the convergence time of the stable routes. It was designed to decrease the load on routers and increase the overall network stability, as the stable prefixes would still be advertised while the propagation of the flapping routes would remain suppressed until such routes become stable again. BGP Route dampening was applied locally on the routes learned by the eBGP peers.

Let’s explain the BGP Route Dampening concept using the network topology depicted in Picture 1. The routers R1 (AS 64501) and R2 (AS 64502) are eBGP peers. Both routers are running Cisco IOS 15.6(2)T.



BGP dampening

Picture 1: Network Topology


R2 Configuration

interface GigabitEthernet0/0
 ip address 10.0.0.2 255.255.255.252

Static null routes are configured and presented in a routing table of R2 in order to advertise a route 1.1.1.1/32 toward the R1.

ip route 1.1.1.1 255.255.255.255 Null0

router bgp 64502
 network 1.1.1.1 mask 255.255.255.255
 neighbor 10.0.0.1 remote-as 64501

R1 Configuration

BGP Route dampening is disabled by default.

interface GigabitEthernet0/0
 ip address 10.0.0.1 255.255.255.252

router bgp 64501
 bgp dampening
 neighbor 10.0.0.2 remote-as 64502

The configuration of BGP dampening is pretty straightforward. When the command bgp dampening is enabled without configuring any optional arguments, the default values are used. The default IOS dampening values are 15 750 2000 60. They can be checked with the command below:

R1# show ip bgp dampening parameters

Checking Dampening Parameters

Picture 2: Checking Dampening Parameters


The meaning of the default dampening parameters:

The penalty will be reduced to half after 15 minutes (Half-life time). The routes will not be used when the Suppress penalty 2000 is reached. The dampened route will be reused when the penalty is decoyed into 750 (Reuse penalty). The routes experiencing route flaps should not be suppressed for more than 60 minutes (Max suppress time).

In order to explain all parameters, we will configure R2 to flap the route 1.1.1.1/32. This will be simulated by putting the command no ip route 1.1.1.1 255.255.255.255 in the configuration of R2. Afterwards, we will let the route 1.1.1.1/32 appear in the routing table of R2 again, issuing the command  ip route 1.1.1.1 255.255.255.255.

The R1 router  is configured for BGP route dampening. Once it receives the route withdraw inside the UPDATE message, the first flap of the route 1.1.1.1/32 is detected. R1 charges a 1000 penalty for the prefix 1.1.1.1/32 (Picture 3). The penalty is charged every time the route flaps. The letter ‘h’ left to the route means that the route is put into a history state.

R1# debug ip bgp dampening

Charged Penalty 1000 for Route 1.1.1.1/32

Picture 3: Charged Penalty 1000 for Route 1.1.1.1/32


The flapped route is marked as having flap history and the flap counter is set to 1. However, the flapped route is still advertised to the neighbor. The penalty is decreased by half after the half-life point is reached which is the default 15 minutes. For instance, when a single flap occurs, after 15 minutes the penalty decreases from 1000 to 500.

R1# show ip bgp dampening flap-statistics

Route 1.1.1.1/32 in History State After First Flap

Picture 4: Route 1.1.1.1/32 in History State After First Flap


The penalty continues to decrease exponentially with time if no further flaps occur (Picture 5). This process of decoying penalty occurs every 5 seconds.
Penalty Decays

Picture 5: Penalty Decays


Penalties are cumulative, they are added with each flap. When another flap occurs, the penalty value is increased by 1000. After the second flap, the penalty is 1782 (Picture 6).
Penalty Value After Second Flap

Picture 6: Penalty Value After Second Flap


After the third flap, the penalty value is 2635 (Picture 7). The penalty value exceeds the suppress limit (2000 by default) and the route 1.1.1.1/32 is suppressed. The route is not used for forwarding and it is not advertised to any eBGP neighbor. The state of a route is changed from History to Damp (Picture 8).
Penalty Value After Third Flap

Picture 7: Penalty Value After Third Flap


The routes in dampened state are marked with the letter “d” and they are not advertised to the neighbors until the reuse limit is reached. There are 3 minutes and 29 seconds left until reaching the reuse limit. (Picture 8)

R1# show ip bgp dampening flap-statistics

Dampened Route 1.1.1.1/32 in BGP Table

Picture 8: Dampened Route 1.1.1.1/32 in BGP Table


Once a route is stabilized and is dropped below a reuse limit, the route 1.1.1.1/32 gets to be re-advertised again (Picture 9). The default reuse value is 750, the router checks every 10 second for the routes that have fallen under the reuse-limit.

R1# show ip bgp dampening flap-statistics

Default Reuse limit 750 Reached

Picture 9: Default Reuse limit 750 Reached


The penalty value continues to decay if the route 1.1.1.1/32 does not flap again (Picture 10). However, If the prefix carries on flapping, penalty is incremented.

Decoying Flap Value

Picture 10: Decoying Flap Value


The penalty value is eventually reset to zero when the penalty is less than ½ of the reuse limit (375 by default) (Picture 11).

R1# show ip bgp dampening flap-statistics

Route 1.1.1.1/32 Cleared from Memory

Picture 11: Route 1.1.1.1/32 Cleared from Memory

Conclusion:

The increase of routers’ processing power has made the practice of using BGP dampening to prevent CPU consumption obsolete. Modern routers have enough CPU power to support BGP updates without negatively affecting performance, mostly when they hold only a subset of a full BGP table. BGP Flap dampening is not considered a good practice any longer. There is a number of negative effects associated with the use of technology described in the RIPE Routing Working Group Recommendations On Route-flap Damping. It makes complete sense for this feature to be disabled by default on Cisco routers. Nevertheless it can still be used between the eBGP peers on private links. For instance, it can prevent traffic oscillation between the primary and the backup paths.
